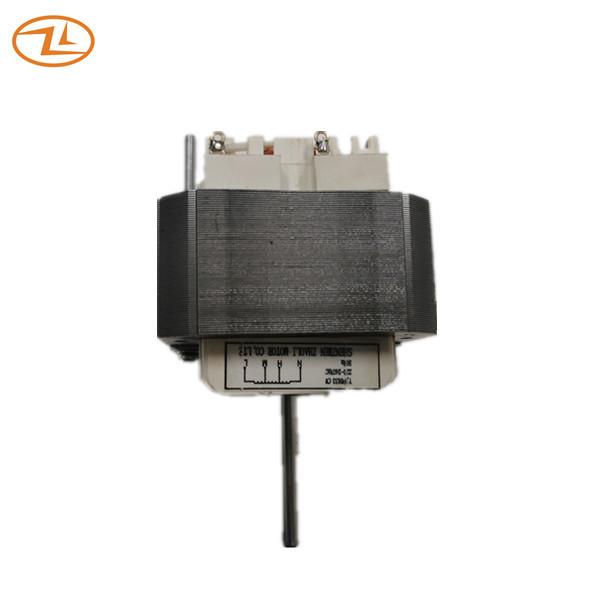

Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
Specifications
Brand Name :
Zhaoli
Model Number :
YJ84-30
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
230V 50HZ
Stack size :
84.5x67.5mm
Lamination :
30mm
Insulation class :
CL.B
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
kitchen hood
Description

Shaded Pole Motor YJ84-30 Hood Motor Zhaoli Motor 230V 50HZ Low Noise Sleeve Bearing

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

Specification:

Rated Voltage/ Frequency

V/HZ

 Speed steps Free load On load

Current

A

Input power

W

Speed

RPM

Current

A

Input power

W

Speed

RPM
230V 50HZ High 0.49+/-15% 53+/-15% >2900 0.62+/-15% 87+/-15% 2320+/-150
Medium 0.35+/-15% 42+/-15% >2900 0.51+/-15% 74+/-15% 2000+/-150
Low 0.30+/-15% 36.5+/-15% >2900 0.47+/-15% 67.5+/-15% 1630+/-150

Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)

Dielectric strengh: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

Drawing:

Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing

Application: Kitchen hood

Yj84-30 Hood 230v 50hz Shaded Pole Ac Motor Low Noise Sleeve Bearing
