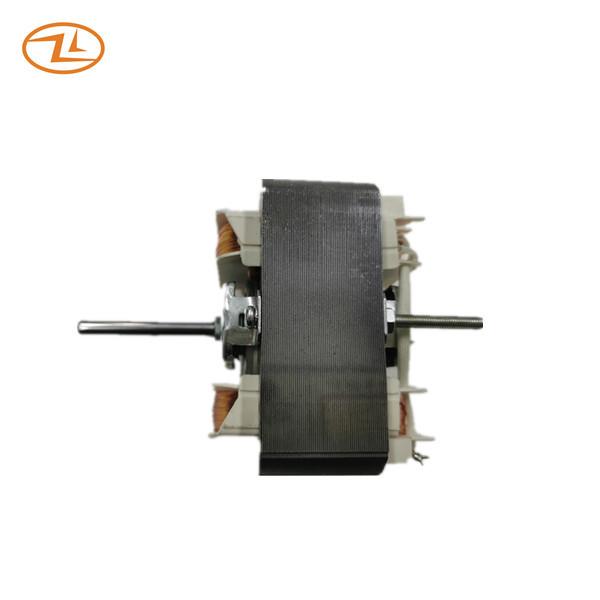

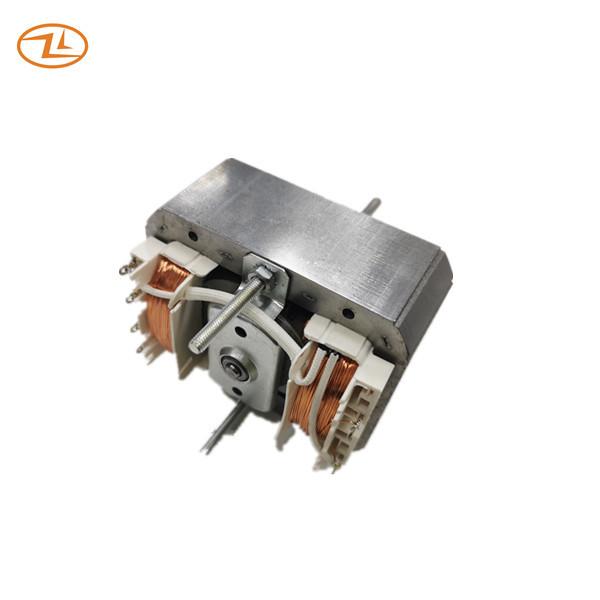

Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
Specifications
Brand Name :
Zhaoli
Model Number :
YJ84-30
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
230V 50HZ
Stack size :
84.5x67.5mm
Lamination :
30mm
Insulation class :
CL.B
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
kitchen hood
Description

YJ84-30 Shaded Pole Motor Kitchen Hood Motor Zhaoli Motor 230V 50HZ Low Noise

Specification:

Rated Voltage/ Frequency

V/HZ

 Speed steps Free load On load

Current

A

Input power

W

Speed

RPM

Current

A

Input power

W

Speed

RPM
230V 50HZ High 0.49+/-15% 53+/-15% >2900 0.62+/-15% 87+/-15% 2320+/-150
Medium 0.35+/-15% 42+/-15% >2900 0.51+/-15% 74+/-15% 2000+/-150
Low 0.30+/-15% 36.5+/-15% >2900 0.47+/-15% 67.5+/-15% 1630+/-150

Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)

Dielectric strengh: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

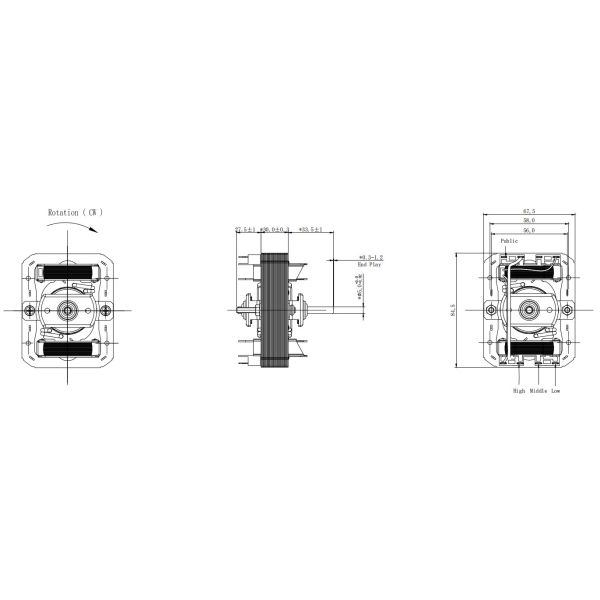

Drawing:

Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise

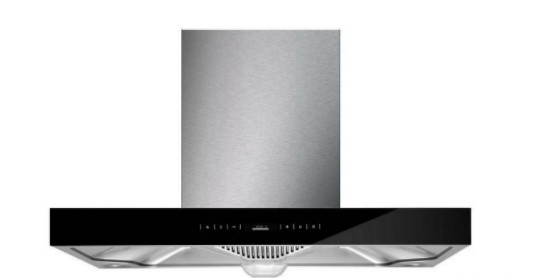

Application: Kitchen hood

Kitchen Hood Asynchronous Shaded Pole Motor 230v 50hz Low Noise
