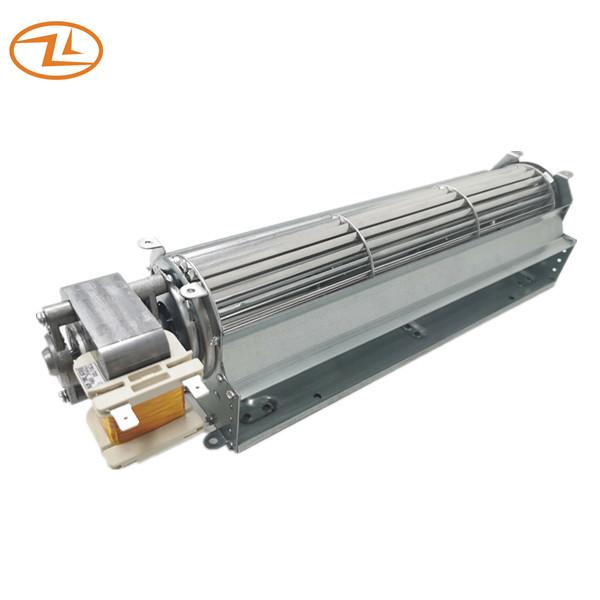

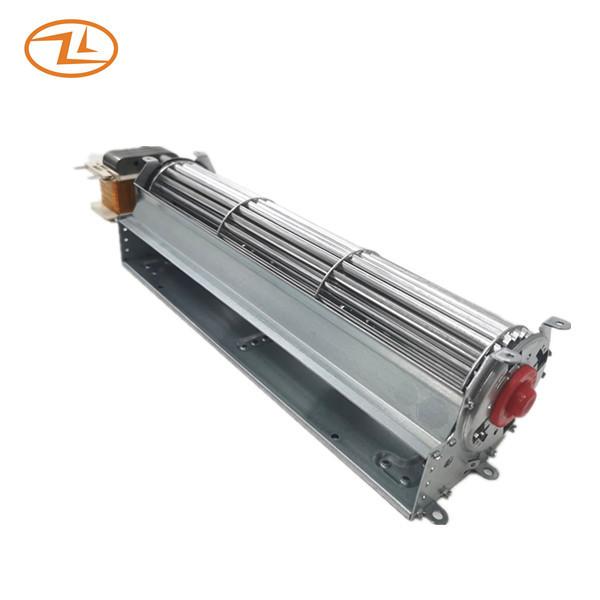

60mm Tangential Blower Cross Flow Fans 230V 50HZ For Freezers
60mm Tangential Blower Cross Flow Fans 230V 50HZ For Freezers
60mm Tangential Blower Cross Flow Fans 230V 50HZ For Freezers
60mm Tangential Blower Cross Flow Fans 230V 50HZ For Freezers
Specifications
Brand Name :
Zhaoli
Model Number :
60-300
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
Tangential Blower Fan
Rated voltage :
220-240V 50/60HZ
Motor model :
YJ61-25
Insulation class :
CL.H
Motor protection :
Impedance protected
Blower size :
60x300mm
Blade material :
aluminium alloy
Frame :
Galvanized sheet steel
Bearing :
ball bearing or sleeve bearing optional
Mounting :
4 directions flexible
Color :
mainly original silver or black
Printing :
Customized printing
Packing :
Customized packing
Application :
Air curtain/Air conditioning/Freezers/Fireplaces
Description

Tangential Blower Fan Cross Flow Fan 60/65mm Blower Size 300mm Long 220-240V 50HZ

Specification:

Motor Type AC shaded pole motor YJ61-25
Blower size 60X300mm
Rated voltage/frequency 230V 50HZ
Starting voltage <= 176V
Rated current <= 0.5A
Rated power 40+/20% W
Rated speed 2100+/- 10% RPM
Rising Temp. IEC60335-1
Lock Temp. IEC60335-1
High-voltage test 1800VAC/2mA/1S
Cold insulation resistance >= 100MΩ
End play 1.0mm max

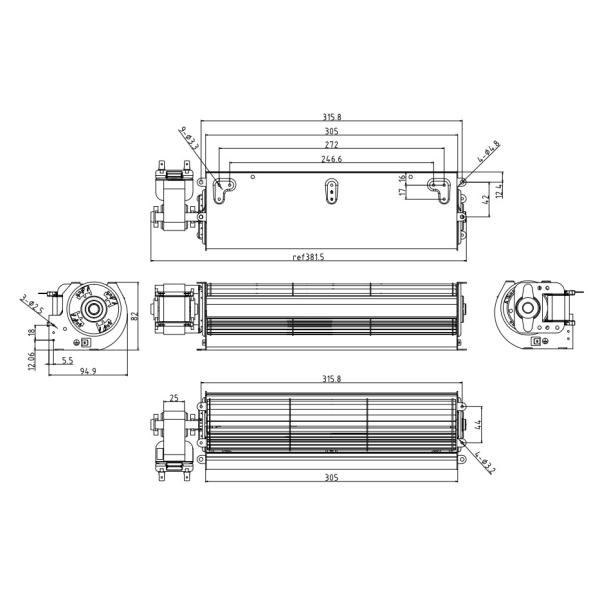

Drawing:

60mm Tangential Blower Cross Flow Fans 230V 50HZ For Freezers

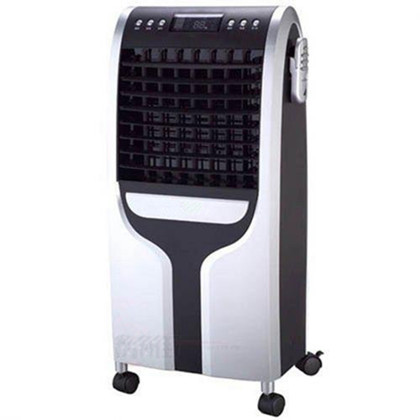

Application: This kind of cross flow fan is widely used in different industries, like hotels, construction works, home use appliances and so on. For example, Air curtain, Air conditioning, Freezers, Electric Fireplaces, Oven, Heater fan.

60mm Tangential Blower Cross Flow Fans 230V 50HZ For Freezers
