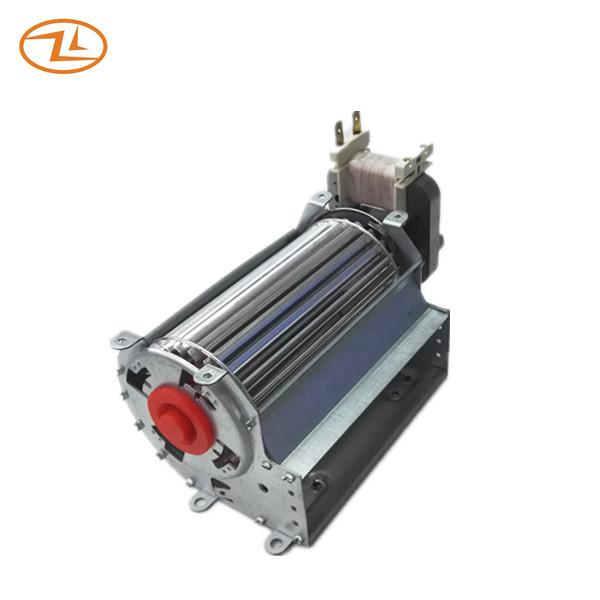

60X120mm Blower Electric Oven Fan 240V 0.1A Cross Flow Cooling Fan
60X120mm Blower Electric Oven Fan 240V 0.1A Cross Flow Cooling Fan
60X120mm Blower Electric Oven Fan 240V 0.1A Cross Flow Cooling Fan
60X120mm Blower Electric Oven Fan 240V 0.1A Cross Flow Cooling Fan
Specifications
Brand Name :
Zhaoli
Model Number :
60-120
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
tangential fan blower
Rated voltage :
220-240V 50/60HZ
Motor model :
YJ61-10
Insulation class :
CL.H
Motor protection :
Impedance protected
Blower size :
60x120mm
Blade material :
aluminium alloy
Frame :
Galvanized sheet steel
Bearing :
ball bearing or sleeve bearing optional
Mounting :
4 directions flexible
Color :
mainly original silver or black
Printing :
Customized printing
Packing :
Customized packing
Application :
Built-in Oven Stand oven
Description

Tangential Fan For Electric Built-In Wall Oven Use 60-120mm Blower Size CL.H

This 60X120mm cross flow fan/tangential is mainly applied in built-in electric oven to cool down the oven after use. Upon customers' need, It is flexible to change the blower diameter and length, bearing and fitting holes and performance.

Specification:

Motor Type AC shaded pole motor YJ61-10
Blower size 60X120mm
Rated voltage/frequency 220-240V 50/60HZ
Starting voltage <= 176V
Rated current <= 0.1A
Rated power 12+/20% W
Rated speed 1100+/- 15% RPM
Rising Temp. IEC60335-1
Lock Temp. IEC60335-1
High-voltage test 1800VAC/2mA/1S
Cold insulation resistance >= 100MΩ
End play

1.0mm max

Drawing:

60X120mm Blower Electric Oven Fan 240V 0.1A Cross Flow Cooling Fan

Application: Built-in electric wall oven

60X120mm Blower Electric Oven Fan 240V 0.1A Cross Flow Cooling Fan
