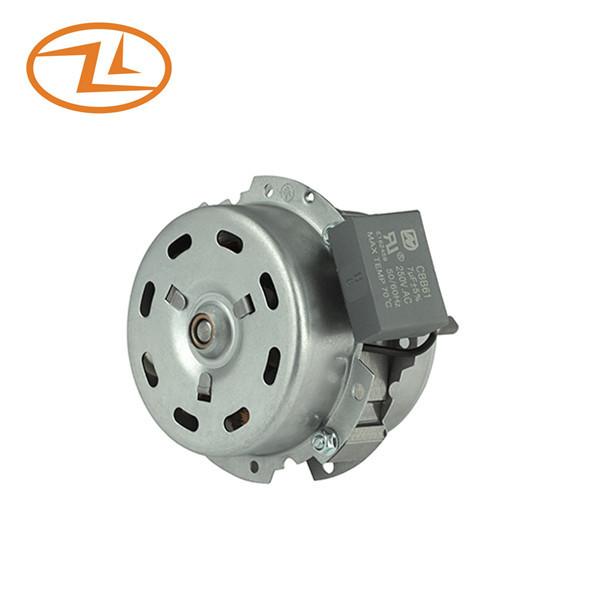

Circulator Tower Fan Motor Capacitor Motor 127V 18mm AC Capacitor Motor
Circulator Tower Fan Motor Capacitor Motor 127V 18mm AC Capacitor Motor
Specifications
Brand Name :
Zhaoli
Model Number :
78-18
Certification :
CE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
capacitor motor
Rated voltage :
120-127V 60HZ
Stack size :
78x78mm
Lamination thickness :
18mm
Insulation class :
CL.B
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Motor type :
Induction motor
Phase :
Single phase
Application :
Table fan
Description

Capacitor Motor 78-18 for 10/12/14inch circulator fan, tower fan

Capacitor motor is mainly composed of stator, winding, rotor and bracket module. There are two windings for single-phase capacitor motor:
one is connected directly to the power supply and the other is conneced in series with a capacitor to generate a rotating magnetic field. The capacitors cause a phase shaft between the currents flowing through windings, whose axes are spatially displaced. Maxium toque is developed when the phase shift between the two currents is 90° and the amplitude of the currents is selected such that the rotating gield becomes circular.

Characteristics:
Low noise, stable operation, long life, no electromagnetic interference.

It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (12inch fan)

Current

A

Input power

W

Current

A

Input power

W

Speed

RPM
78-18 127 60 0.495 53.8 0.57 72 1500
0.31 32.5 0.456 54 1200
0.27 26.0 0.418 50 900
78-18 220 50 0.21 44.7 0.23 48 1150
0.14 30 0.185 39 850
0.11 23 0.16 33 550

Drawing:

Circulator Tower Fan Motor Capacitor Motor 127V 18mm AC Capacitor Motor

Application: Table fan, Tower fan, Circulator fan, Electric fan

Circulator Tower Fan Motor Capacitor Motor 127V 18mm AC Capacitor Motor
