Three Phase Table BLDC Fan Motor Brushless 24V For Circulator
Three Phase Table BLDC Fan Motor Brushless 24V For Circulator
Three Phase Table BLDC Fan Motor Brushless 24V For Circulator
Three Phase Table BLDC Fan Motor Brushless 24V For Circulator
Specifications
Brand Name :
Zhaoli
Model Number :
D6T42H4B04
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
BLDC motor
Rated voltage :
24VDC
Stack size :
φ42mm
Bearing :
Ball bearings
Number of stator slots :
four
Number of magnet poles :
four
Construction :
Outer rotor
Number of phases :
three phase
Rectifying method :
electronices
Control type :
PWM
Output signal :
FG
Packing :
Customized packing
Printing :
Customized printing
Application :
Bathroom exhaust fan/ circulator fan
Description

BLDC Fan Motor Three Phase DC Motor 24VDC Table Fan Circulator Fan Use

Brushless DC motor can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.

  • Operating condition
Rated voltage 24VDC
Operating voltage 21.6~26.4VDC
Operating condition 0℃~40℃, RH 5%~95%
Storage condition -20℃~60℃, RH 5%~95%
  • Motor characteristics
Rated voltage 24VDC
Operating voltage 21.6~26.4VDC
Rated load 75mN.m
Rated speed(on load) 1800+/- 10% RPM
Rated current(on load) 0.20A max
Rotation direction CW(view from shaft side)
Working duty continuous
Position detection method FOC
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <65K
Speed control

PWM

PWM frequency: 15KHZ ~ 20KHZ

Duty cycle: 1%~99%

L level: 0~1.0V; H level: 2~5.5V;
Detecting method of motor speed

FG signal

L level: 0~0.5V; H level: 4.5~5.5V;

Max input/output current :5mA

Drawing:

Three Phase Table BLDC Fan Motor Brushless 24V For Circulator

Three Phase Table BLDC Fan Motor Brushless 24V For Circulator

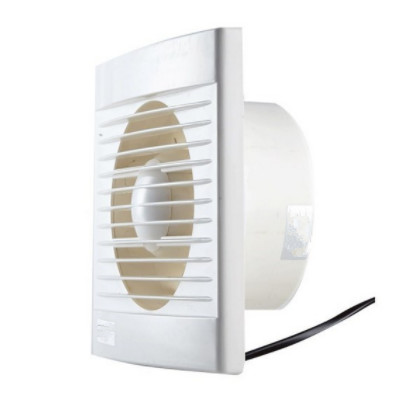

Typical Application: Bathroom exhaust fan, Bathroom ventilating fan, Circulator Fan

Three Phase Table BLDC Fan Motor Brushless 24V For CirculatorThree Phase Table BLDC Fan Motor Brushless 24V For Circulator
