Specifications
Brand Name :
Zhaoli
Model Number :
ZL300D-N70-140-02
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
Oileless air compressor
Rated voltage :
220V 50HZ
Insulation class :
CL.B
Dimension :
215x166x128mm
Air flow rate(L/M@kpa) :
70L/M @ 140Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Packing :
125pcs/carton
Printing :
Customized printing
Application :
offen used for Oxygen concentrator 5L
Description

5L Oxygen Concentrator Oil-Free Air Compressor 110V 60HZ 300W 70L/M@140Kpa

An oil-free air compressor is characterized in an air inlet provided at a lateral open end of a crankcase of the air compressor. External air enters into the crankcase via the lateral air inlet and then enters into a cylinder above the crankcase via a check valve provided on a piston head in the cylinder. Air in the cylinder is compressed by the piston head and then discharged to an air storage tank via a single air outlet provided on a cylinder head of the cylinder.

Specification:

Model Rated voltage/frequency V/HZ Rated Speed RPM Rated input power W Working air pressure Kpa Rated flow rate L/M
ZL300(5L) 220V 50HZ 1400RPM 300W 140Kpa >70L/M
ZL300(5L) 220V 60HZ 1680RPM 300W 140Kpa >70L/M
ZL300(5L) 110V 50HZ 1400RPM 300W 140Kpa >70L/M
ZL300(5L) 110V 60HZ 1680RPM 300W 140Kpa >70L/M

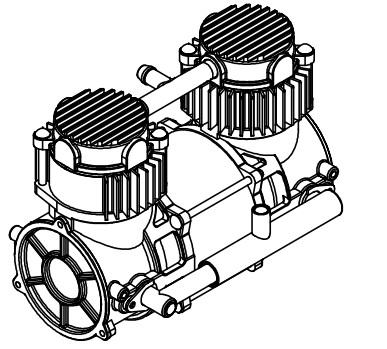

Drawing:

5L Oxygen Concentrator Air Compressor Ball Bearing 300W 70L/M 140 Kpa

5L Oxygen Concentrator Air Compressor Ball Bearing 300W 70L/M 140 Kpa

5L Oxygen Concentrator Air Compressor Ball Bearing 300W 70L/M 140 Kpa

5L Oxygen Concentrator Air Compressor Ball Bearing 300W 70L/M 140 Kpa

Application: Oxygen generator 5L

5L Oxygen Concentrator Air Compressor Ball Bearing 300W 70L/M 140 Kpa
