70L/M Oilless Air Compressors 5L High Pressure Portable Oxygen Concentrator Compressors
70L/M Oilless Air Compressors 5L High Pressure Portable Oxygen Concentrator Compressors
70L/M Oilless Air Compressors 5L High Pressure Portable Oxygen Concentrator Compressors
70L/M Oilless Air Compressors 5L High Pressure Portable Oxygen Concentrator Compressors
Specifications
Brand Name :
Zhaoli
Model Number :
ZL280A-70-200-24
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
Oileless air compressor
Rated voltage :
220V 50HZ
Insulation class :
CL.B
Dimension :
234x100x182mm
Air flow rate(L/M@kpa) :
70L/M@200Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Protection :
motor thermal protected/corrosion resistance
Life cycle :
continous duty
Packing :
125pcs/carton
Printing :
Customized printing
Application :
5L 7L Oxygen concentrator
Description

Oilless Air Compressor Portable Oxygen Concentrator Use High Pressure 70L/M

Oil free air compressor features:

Oil-less operation(clean air stream, less maintenance)

High performance piston seal (optimum life)

Permanently lubricated ball bearing(optimum life)

Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Thermally protected motor
Pressure relief valve included

Dynamically balanced(low operation vibration)
Twin fans provide cooling air for the motor and cylinders
Continous duty

Specification:

Model ZL280A-70-200-24 ZL280A-70-200-XX
Rated voltage/frequency V/HZ 220V/ 50HZ 120V/ 60HZ
Rated speed RPM 1300RPM 1650RPM
Rated input power W 370W 380W
Working pressure Kpa 200kpa 200kpa
Rated air flow L/M >70L/M >70L/M
Thermal protection Thermal protector 145℃
Insulation resistance The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

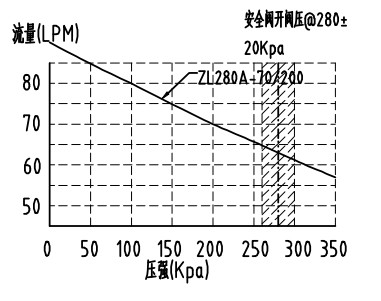

Drawing:

70L/M Oilless Air Compressors 5L High Pressure Portable Oxygen Concentrator Compressors

70L/M Oilless Air Compressors 5L High Pressure Portable Oxygen Concentrator Compressors

Application: Often used for 5L or 7L Oxygen generator. It is also suitable for Vacuum, Laboratory, Medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
