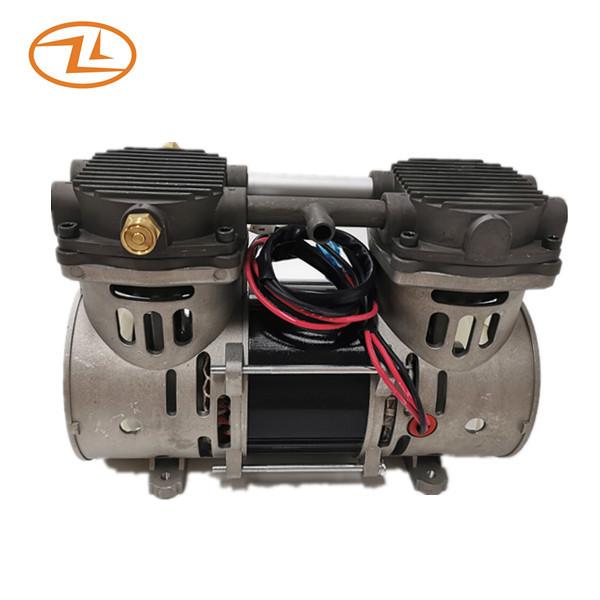

60L/M Silent Oil Free Compressor 310W Rust Proof For Medical
60L/M Silent Oil Free Compressor 310W Rust Proof For Medical
60L/M Silent Oil Free Compressor 310W Rust Proof For Medical
60L/M Silent Oil Free Compressor 310W Rust Proof For Medical
Specifications
Brand Name :
Zhaoli
Model Number :
ZL280A-60-185-06
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
Oileless air compressor
Rated voltage :
220V 50HZ
Insulation class :
CL.B
Dimension :
234x100x164mm
Air flow rate(L/M@kpa) :
60L/M @ 185Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Protection :
motor thermal protected/ rust proof
Life cycle :
continous duty
Packing :
125pcs/carton
Printing :
Customized printing
Application :
Oxygen concentrator 5L
Description

Oil Free Air Compressor Oxygen Concentrator Air Compressor 60L/M Medical Use

Application: Suitable for Vacuum, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
- Often for Oxygen generator 5L

Oilless air compressor features:

Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty

Specification:

Model ZL280A-60-185-06 ZL280A-60-185-XX
Rated voltage/frequency V/HZ 220V/ 50HZ 120V/ 60HZ
Rated speed RPM 1300RPM 1650RPM
Rated input power W 310W 320W
Working pressure Kpa 185kpa 185kpa
Rated air flow L/M >60L/M >60L/M
Thermal protection Thermal protector 145℃
Noise <6dbA
Insulation resistance The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

Drawing:

60L/M Silent Oil Free Compressor 310W Rust Proof For Medical

60L/M Silent Oil Free Compressor 310W Rust Proof For Medical

60L/M Silent Oil Free Compressor 310W Rust Proof For Medical
