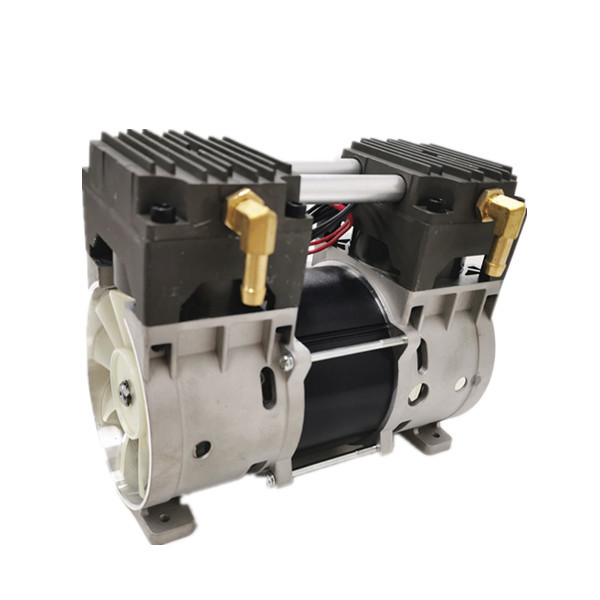

220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ
220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ
220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ
220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ
Specifications
Brand Name :
Zhaoli
Model Number :
ZL450A-120-200-03
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
Oil free air compressor 10L
Rated voltage :
220-240V 50HZ
Insulation class :
CL.B
Dimension :
232x125x195mm
Air flow rate(L/M@kpa) :
120L/M@200Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Protection :
motor thermal protected/corrosion resistance
Life cycle :
continous duty
Packing :
125pcs/carton
Printing :
Customized printing
Application :
10L Medical Oxygen concentrator use
Description

Long Life Oil Free Air Comspressor For 10L Oxygen Concentrator 220-240V 50HZ

An oil-free air compressor is characterized in an air inlet provided at a lateral open end of a crankcase of the air compressor. External air enters into the crankcase via the lateral air inlet and then enters into a cylinder above the crankcase via a check valve provided on a piston head in the cylinder. Air in the cylinder is compressed by the piston head and then discharged to an air storage tank via a single air outlet provided on a cylinder head of the cylinder. This kind of piston air compressor has many advantages as follows:

Oil-less operation(clean air stream, less maintenance)

Permanently lubricated ball bearing(optimum life)

High performance piston seal (optimum life)

Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Wetted parts treated for corrosion resistance

Pressure relief valve included

Thermally protected motor
Twin fans provide cooling air for the motor and cylinders

Dynamically balanced(low operation vibration)
Low noise

Continous duty

Specification:

Model ZL450A-120-200-03 ZL450A-120-200-XX
Rated voltage/frequency V/HZ 220V/ 50HZ 120V/ 60HZ
Rated speed RPM 1300RPM 1650RPM
Rated input power W 670W 680W
Working pressure Kpa 200kpa 200kpa
Rated air flow L/M >120/M >120/M

Drawing:

220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ

220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ

220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ

Application: Mainly used for 10L Oxygen generator or other atomizer/vacumm use.

220 - 240V Portable O2 Quiet Oil Free Air Compressor Long Life 50HZ
