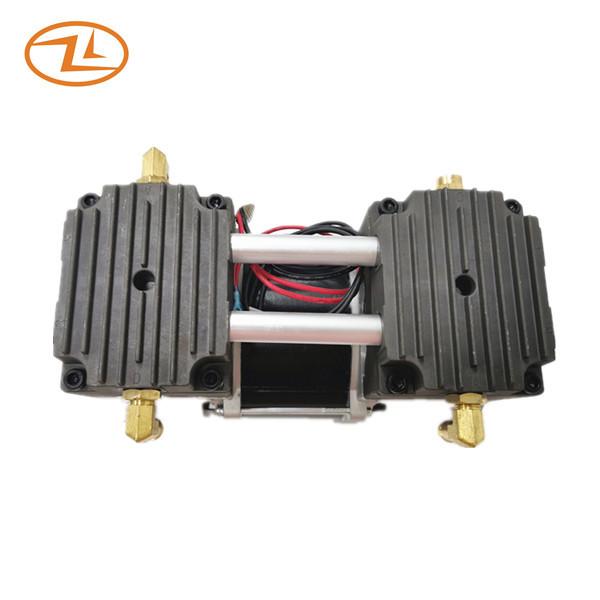

120L/M Portable Medical Oil Free Piston Compressor 670W 200 Kpa
120L/M Portable Medical Oil Free Piston Compressor 670W 200 Kpa
120L/M Portable Medical Oil Free Piston Compressor 670W 200 Kpa
120L/M Portable Medical Oil Free Piston Compressor 670W 200 Kpa
Specifications
Brand Name :
Zhaoli
Model Number :
ZL450A-120-200-03
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
Oil free air compressor 10L
Rated voltage :
220V 50HZ
Insulation class :
CL.B
Dimension :
232x125x195mm
Air flow rate(L/M@kpa) :
120L/M@200Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Protection :
motor thermal protected/corrosion resistance
Life cycle :
continous duty
Packing :
125pcs/carton
Printing :
Customized printing
Application :
10L Oxygen concentrator
Description

120L/M Medical Oxygen Concentrator Use Oilless Piston Air Compressor 650W

Specification:

Model ZL450A-120-200-03
Rated voltage/frequency V/HZ 220V/ 50HZ
Rated input power W 670W
Starting voltage V 200V max
Working air pressure PSI 200kpa
Rated flow rate L/H 120L/M
Insulation Class CL.B
Protection Thermal protector 145℃
Piston bearing Ball bearing
Nozzle direction Flexible


Application: Mainly used for 10L Oxygen generator.

This kind of piston air compressor has many advantages as follows:

Oil free air compressor features:

Oil-less operation(clean air stream, less maintenance)

High performance piston seal (optimum life)

Permanently lubricated ball bearing(optimum life)

Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Wetted parts treated for corrosion resistance

Pressure relief valve included

Thermally protected motor

Dynamically balanced(low operation vibration)
Twin fans provide cooling air for the motor and cylinders
Low noise

Continous duty

Drawing:

120L/M Portable Medical Oil Free Piston Compressor 670W 200 Kpa

120L/M Portable Medical Oil Free Piston Compressor 670W 200 Kpa
