Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston
Specifications
Brand Name :
Zhaoli
Model Number :
ZL300D-N70-140-02
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
Oileless air compressor
Rated voltage :
220V 50HZ
Insulation class :
CL.B
Dimension :
215x166x128mm
Air flow rate(L/M@kpa) :
70L/M @ 140Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Packing :
125pcs/carton
Printing :
Customized printing
Application :
offen used for Oxygen concentrator 3L
Description

Oilless Air Compressor For Medical Use Vacumn Use 140Kpa High Performance Piston

Oilless air compressor features:

Oil-less operation(clean air stream, less maintenance)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty

Specification:

Model ZL300D-N70-140-02
Rated voltage/frequency V/HZ 220V/ 50HZ
Rated input power W 300W
Starting voltage V 200V max
Working air pressure PSI 140kpa
Rated flow rate L/H 70L/M
Protection Thermal protector 145℃
Piston bearing Permanently lubricated ball bearing
Nozzle direction Flexible
Insulation resistance The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

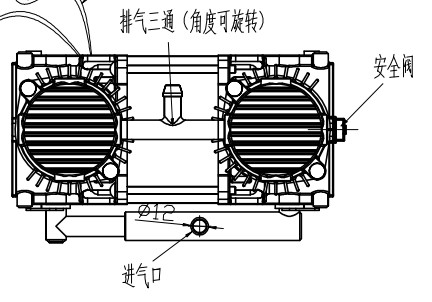

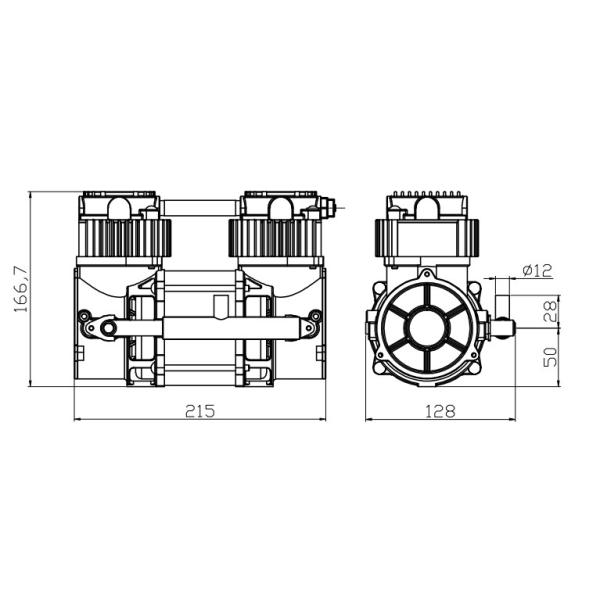

Drawing:

Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston

Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston

Portable Medical Oilless Air Compressors Vacuum 140 Kpa With Piston

Application: Suitable for Vacuum adsorption, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile, Chemical... and so on.
- Often for Oxygen generator 5L
