Vacuum Atomizing Oilless Air Compressors Ball Bearings 60L/M 185 Kpa
Vacuum Atomizing Oilless Air Compressors Ball Bearings 60L/M 185 Kpa
Vacuum Atomizing Oilless Air Compressors Ball Bearings 60L/M 185 Kpa
Vacuum Atomizing Oilless Air Compressors Ball Bearings 60L/M 185 Kpa
Specifications
Brand Name :
Zhaoli
Model Number :
ZL280A
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
oilless air compressor 5L
Rated voltage :
220V 50HZ
Insulation class :
CL.B
Dimension :
234x100x164mm
Air flow rate(L/M@kpa) :
60L/M@185Kpa
Bearing :
Ball bearings
Accessories :
Capacitor, safe valve, fittings
Packing :
125pcs/carton
Printing :
Customized printing
Application :
offen used for Oxygen concentrator 5L
Description

Oil Free Air Compressor For Oxygen Concentrator 5L Atomizer/Vacumm Use

Oil-free air compressor features:

Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Thermally protected motor
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty

Application: This model is mainly applied in 5L oxygen concentrator or any other atomizer use.

Specification:

Rated voltage/frequency V/HZ 220V/ 50HZ
Rated input power W 280W
Starting voltage V 200V max
Working air pressure PSI 26PSI min
Rated flow rate L/H 60L/M min
Insulation Class CL.B
Protection Thermal protector 145℃
Piston bearing Ball bearing
Nozzle direction Flexible
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

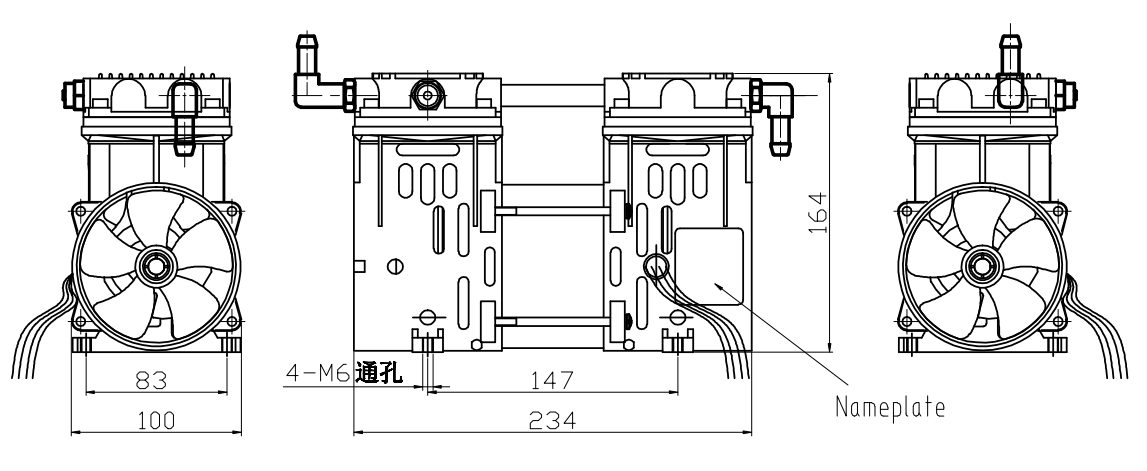

Drawing:

Vacuum Atomizing Oilless Air Compressors Ball Bearings 60L/M 185 Kpa

Vacuum Atomizing Oilless Air Compressors Ball Bearings 60L/M 185 Kpa
