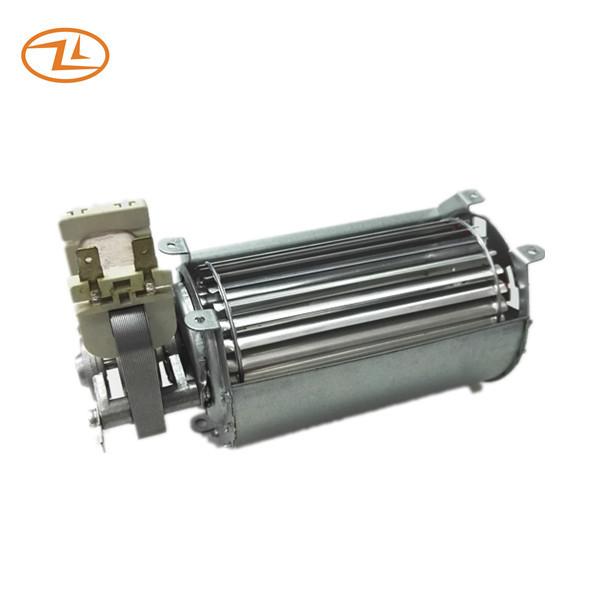

Wall Oven Cross Flow Fans Blower 240V Galvanized With AC Shaded Pole Motor
Wall Oven Cross Flow Fans Blower 240V Galvanized With AC Shaded Pole Motor
Wall Oven Cross Flow Fans Blower 240V Galvanized With AC Shaded Pole Motor
Wall Oven Cross Flow Fans Blower 240V Galvanized With AC Shaded Pole Motor
Specifications
Brand Name :
Zhaoli
Model Number :
60-120
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
tangential fan blower
Rated voltage :
220-240V 50/60HZ
Motor model :
YJ61-10
Insulation class :
CL.H
Motor protection :
Impedance protected
Blower size :
60x120mm
Blade material :
aluminium alloy
Frame :
Galvanized sheet steel
Bearing :
ball bearing or sleeve bearing optional
Mounting :
4 directions flexible
Color :
mainly original silver or black
Printing :
Customized printing
Packing :
Customized packing
Application :
Built-in Oven Stand oven
Description

Cross Flow Fan With AC Shaded Pole Motor For Built-In Wall Oven Use Blower Size Flexible

Specification:

Motor Type AC shaded pole motor YJ61-10
Blower size 60X120mm
Rated voltage/frequency 220-240V 50/60HZ
Starting voltage <= 176V
Rated current <= 0.1A
Rated power 12+/20% W
Rated speed 1100+/- 15% RPM
Rising Temp. IEC60335-1
Lock Temp. IEC60335-1
High-voltage test 1800VAC/2mA/1S
Cold insulation resistance >= 100MΩ
End play

1.0mm max

Features:
1. The aluminium made alloy cross flow fan is temperature resistant and has qualities of light in weight, low noise, minimum vibration, high strength and long life.
2. The angle and length of cross flow fan leaves are easily adjustable to adapt to any customers' requirements.
3. The motor bearing is protected by a layer of grease which would allow 15000 hours of usage.

Drawing:

Wall Oven Cross Flow Fans Blower 240V Galvanized With AC Shaded Pole Motor

Application: Built-in electric wall oven/ Stand oven
