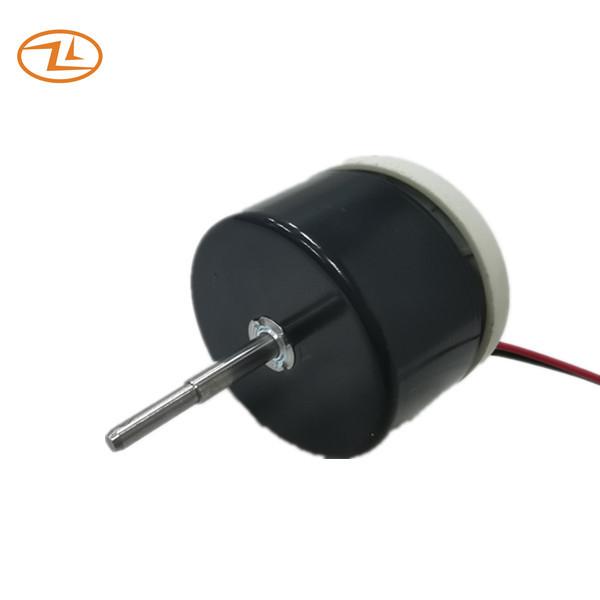

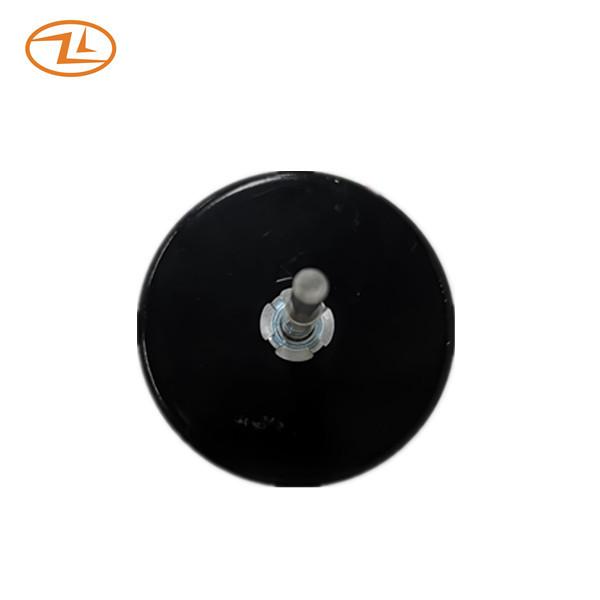

CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
Specifications
Brand Name :
Zhaoli
Model Number :
D4A42H4B85
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
BLDC motor
Rated voltage :
24VDC
Stack size :
φ42mm
Bearing :
Ball bearings
Number of stator slots :
four
Number of magnet poles :
four
Construction :
Outer rotor
Number of phases :
three phase
Rectifying method :
electronices
Control type :
PWM
Output signal :
FG
Packing :
Customized packing
Printing :
Customized printing
Application :
Bath fan/ventilating fan
Description

24V BLDC Motor For Bathroom Exhaust Fan Bath Heater Low Noise Brushless DC Motor ​

  • Operating condition
Rated voltage 24VDC
Operating voltage 21.6~26.4VDC
Rotation direction CCW
Working duty continuous
Operating condition 0℃~40℃, RH 5%~90%
Storage condition -20℃~60℃, RH 5%~90%

  • Motor characteristics
Rated voltage 24VDC
Rated speed(free load) 3350+/- 15% RPM
Rated current(free load) 0.12A max
Rated load 33mN.m
Rated speed(on load) 2200+/- 10% RPM
Rated current(on load) 0.4A max
Position detection method Hall element
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <70K

Drawing:

CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM



Typical Application: Bathroom exhaust fan, Bathroom ventilating fan

CCW Rotation Bath Exhaust Fan Motor / 24 Volt Brushless Motor 3350 RPM
