Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ60-20
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
heater fan motor
Rated voltage :
100V 50/60HZ
Stack size :
60.5x58.5mm
Lamination :
20mm
Insulation class :
CL.E
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
impeller
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Explosion-proof/ rust proof
Application :
Electric fan/fan heater
Description

Shaded Pole Motor For Heater 100V 50/60HZ CL.E Long Life Heater Fan Motor

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (impeller)

Current

A

Input power

W

Speed

RPM

Current

A

Input power

W

Speed

RPM
YJ60-20 100 50 0.51 27.6 2850 0.60 37 1300
100 60 0.40 23.0 3400 0.51 31 1050


This is one type of shaded pole motor with 4 fitting holes, mainly applied in fan heaters, small electric fans and air fryers The speed steps are flexible to adjust.

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

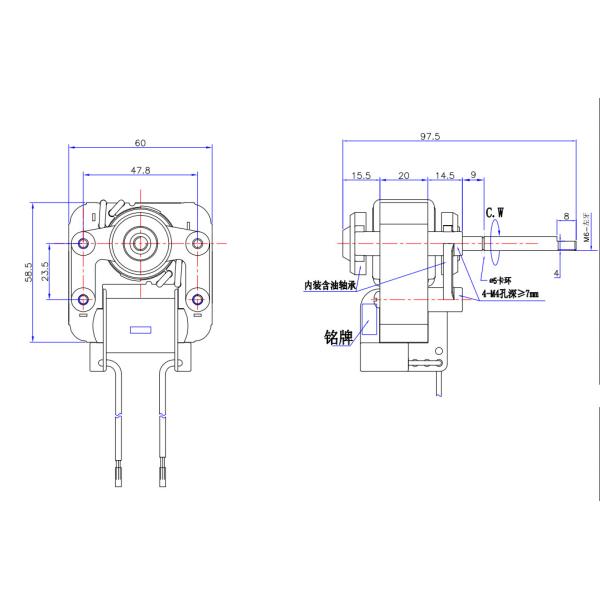

Drawing:

Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor

Long Life Shaded Pole Motor 100V 50HZ CL E Heater Fan Motor
