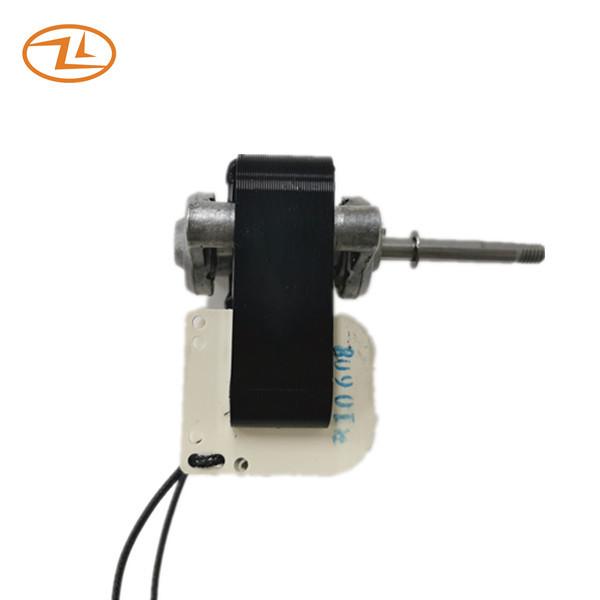

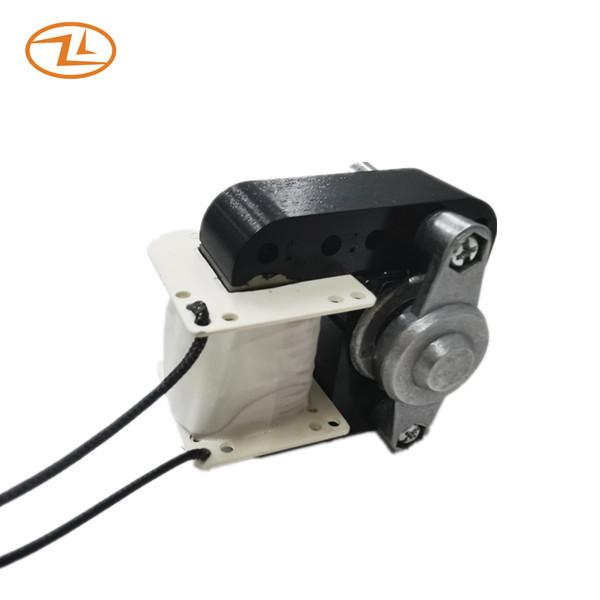

Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing
Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing
Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing
Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing
Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing
Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61/200
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
120V 60HZ
Stack size :
61x60.5mm
Lamination :
20.5mm
Insulation class :
CL.H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
Bed Warmer Blanket Heater Dryer
Description

C-Frame Motor For Blanket Dryer Bed Heater Shoe Dryer Boot Dryer 120V 60HZ

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece. Also it is called C-frame motor.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (impeller)

Current

A

Input power

W

Speed

RPM

 Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ61-20 120 60 0.50+/-15% 25+/-15% 3300+/-10% <90V 0.56+/-15% 33+/-15% 1600+/-10%

Drawing:

Blanket Dryer C Frame Fan Motor 120V 60HZ Customized Printing

Application: Boot Dryer, Blanket Dryer, Bed warmer, Heater, Circulator Fan, Humidifier, Air purifier
