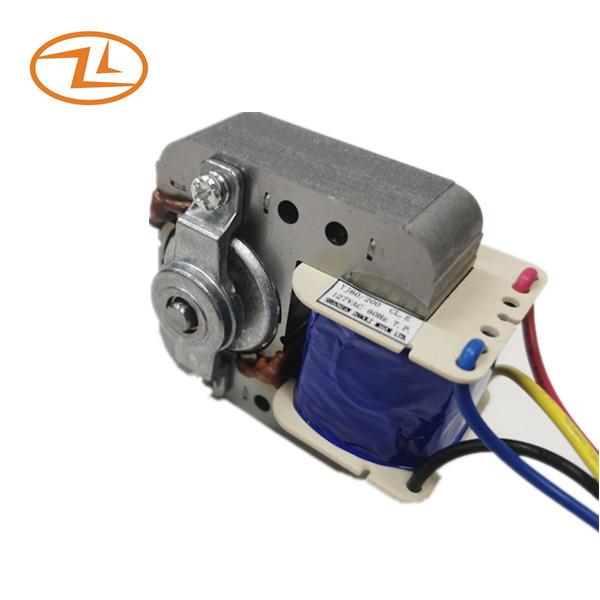

Small Fan Shaded Pole Motor 220V 50HZ Customized Shaft With 2 / 3 Speed Steps
Small Fan Shaded Pole Motor 220V 50HZ Customized Shaft With 2 / 3 Speed Steps
Small Fan Shaded Pole Motor 220V 50HZ Customized Shaft With 2 / 3 Speed Steps
Small Fan Shaded Pole Motor 220V 50HZ Customized Shaft With 2 / 3 Speed Steps
Specifications
Brand Name :
Zhaoli
Model Number :
YJ60-20
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
C-frame motor
Rated voltage :
220V 50HZ
Stack size :
60.5x58.5mm
Lamination :
20mm
Insulation class :
CL.B
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
9inch fan
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Explosion-proof/ rust proof
Application :
Electric fan/Table fan/Small fan
Description

Shaded Pole Motor Small Fan Motor YJ60-20 220V 50HZ With 2/3 Speed Steps

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (9inch fan)

Current

A

Input power

W

Speed

RPM

Current

A

Input power

W

Speed

RPM
YJ60-20 220 50 0.13 17 2850 <= 0.25 <= 30 2100+/-10%
0.08 11 1400 <= 0.20 <= 23 1500+/-10%
YJ60-20 127 60 0.31 21 3400 <= 0.55 <= 35 2300+/-10%
0.23 16.5 3300 <= 0.45 <= 30 1800+/-10%
0.16 12.0 3200 <= 0.35 <= 25

1300+/-10%

This is one type of shaded pole motor with 2/3 speed steps, mainly applied in small electric fans. The speed steps are flexible to adjust.

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.


Drawing:

Small Fan Shaded Pole Motor 220V 50HZ Customized Shaft With 2 / 3 Speed Steps

Application: Table fan, box fan, wall fan

Small Fan Shaded Pole Motor 220V 50HZ Customized Shaft With 2 / 3 Speed Steps
