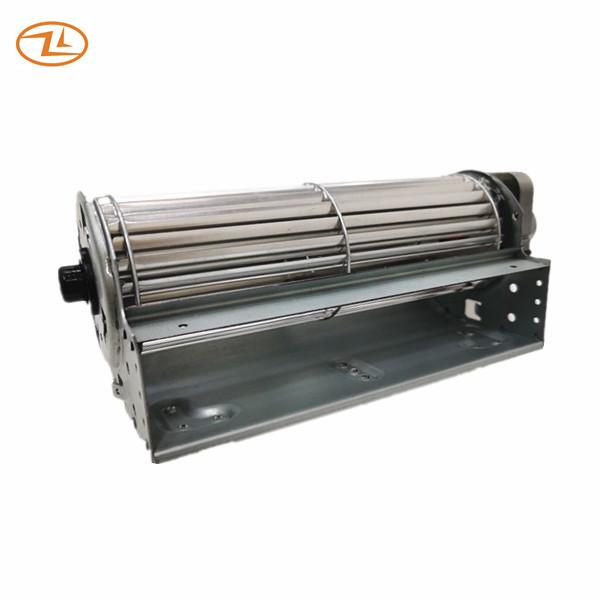

Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater
Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater
Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater
Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater
Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater
Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater
Specifications
Brand Name :
Zhaoli
Model Number :
60-180
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
cross flow fan
Rated voltage :
220V 50HZ
Motor model :
YJ61-10
Insulation class :
CL.H
Motor protection :
Impedance protected
Blower size :
60x180mm
Frame :
Cast iron
Blade material :
aluminium alloy
Bearing :
ball bearing or sleeve bearing optional
Mounting :
4 directions flexible
Color :
mainly original silver or black
Printing :
Customized printing
Packing :
Customized packing
Application :
Oven/Air conditioning/Freezers/Fireplaces
Description

Tangential Fan Cross Flow Fan For Oven Air Curtain Heater Fan Use 220V 50HZ

Cross flow fan


The cross-flow air blower is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.

Specification:

Motor Type AC shaded pole motor YJ61-10
Blower size 60X180mm
Rated voltage/frequency 220V 50HZ
High speed Rated current(no load) 0.144±10%A
Rated power(no load) 19.5±10%W
Rated speed (no load) 2700±200RPM
Low speed Rated current(no load) 0.80±10%A
Rated power(no load) 12.2±10%W
Rated speed (no load) 2400±200RPM
High speed Starting voltage (on load) <= 187V
Rated current (on load) 0.179±10%A
Rated power(on load) 26±10%W
Rated speed (on load) 1500±200RPM
Low speed Rated current (on load) 0.95±10%A
Rated power(on load) 14±10%W
Rated speed (on load) 900±200RPM
Rising Temp. IEC60335-1
Lock Temp. IEC60335-1
High-voltage test 1800VAC/2mA/1S
Cold insulation resistance >= 100MΩ
End play 1.0mm max


Drawing:

Tangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater

Tangential 60x180mm Cross Flow Fans For Oven Air Curtain HeaterTangential 60x180mm Cross Flow Fans For Oven Air Curtain Heater

Application:

Oven, Heater Fan, Electric fireplace, Air curtain
