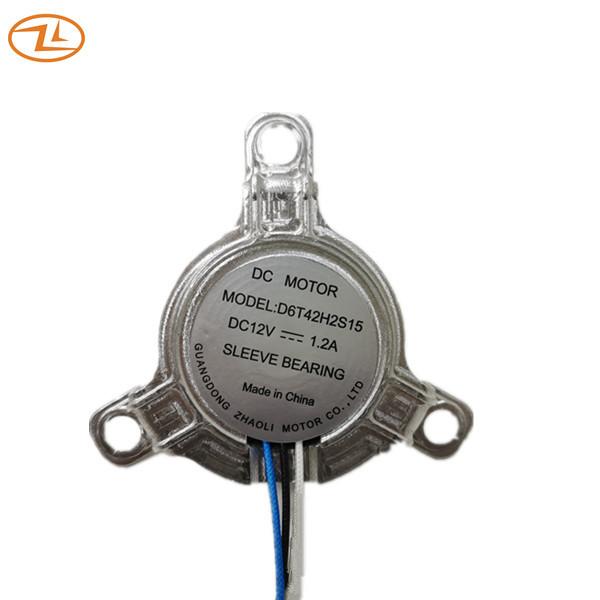

42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller
42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller
42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller
42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller
42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller
42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller
Specifications
Brand Name :
Zhaoli
Model Number :
D6T42H2S12
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
BLDC fan motor
Rated voltage :
12VDC
Stack size :
φ42mm
Bearing :
sleeve bearings
Number of stator slots :
six
Number of magnet poles :
eight
Construction :
Outer rotor
Number of phases :
three phase
Rectifying method :
electronices
Control type :
PWM
Output signal :
FG
Packing :
Customized packing
Printing :
Customized printing
Application :
air fryer/oven
Description

BLDC Motor For Air Fryer Oven Supplied With PCBA Motor Driver Controller

  • Motor electric characteristics
Rated voltage 12VDC
Operating voltage 10.8~13.2VDC
Rated load 42mN.m
Rated speed(on load) 1600+/- 15% RPM
Rated power(on load) 9W
Rotation direction Bi-direction
Insulation class CL.H
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <75K

  • Motor driver and controller

The motor drive is DC chord vector control, and its characteristics are shown in the following table:

Output voltage 12VDC
Output power 9W
Control method PWM
Position detection method FOC
PWM signal

PWM frequency range: 15-28KHz

Duty cycle range: 1%~99%

L level: 0-1.0V; H level: 2-5.5V

Drawing:

42mm Sleeve Bearings Bldc Fan Motor With PCBA Motor Driver Controller



Application: Air fryer with multi-fuction and smart control
