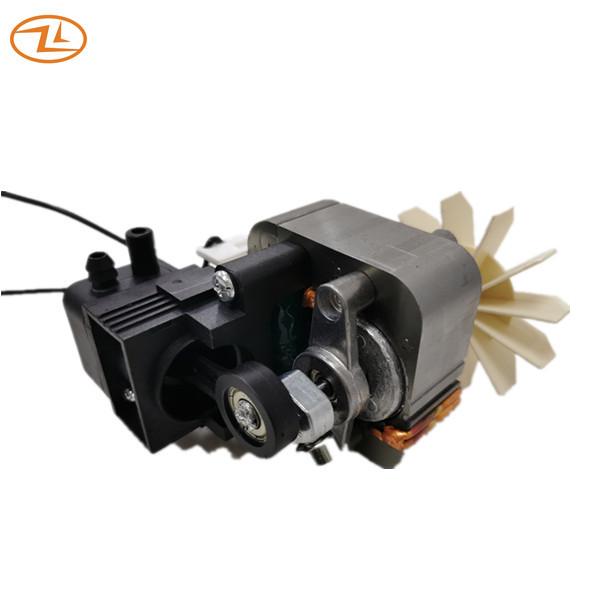

High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-25
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
220V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25.5mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/Vacuum use/Inhaler
Description

Pump With Motor For Nebulizer Compressor Nebulizer Motor High Pressure

Specification:

Rated voltage/frequency V/HZ 220V 50HZ
Rated current A 0.57A max
Rated input power W 72W max
Starting voltage V 198V max
Working air pressure PSI 8PSI min
Rated flow rate L/H 300L/H min
Max pressure PSI 35PSI min
Protection Thermal protector 150℃
Piston bearing Ball bearing
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Noise When the pump assembly operates on the sponge that is 5cm thickness, noise is less than 75dBA at the distance of 1M assembly.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.

Drawing:

High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump

Application: Piston Compressor nebulizer

High Pressure 2poles Nebulizer Compressor Motor For Vacuum Pump
