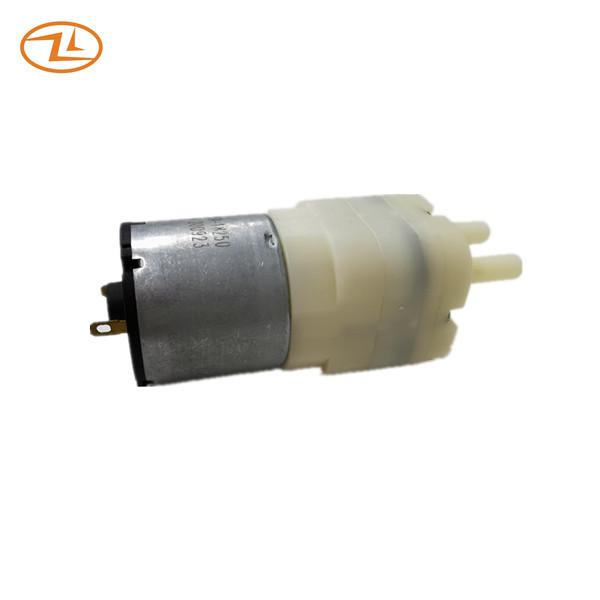

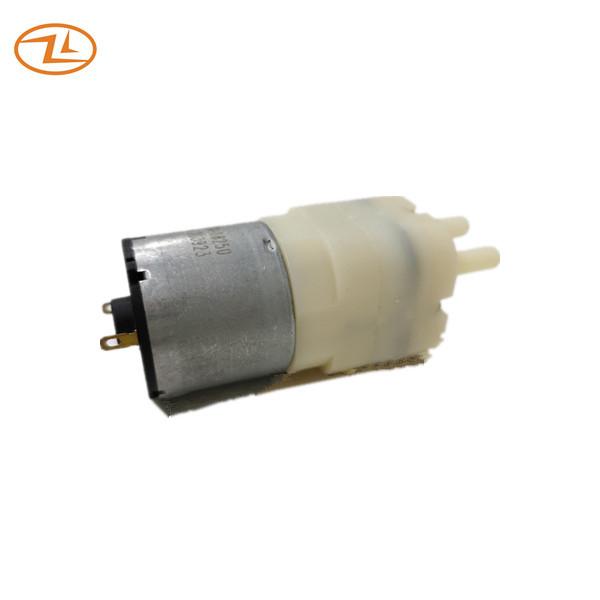

Mini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psi
Mini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psi
Mini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psi
Mini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psi
Specifications
Brand Name :
Zhaoli
Model Number :
DC3229PD01
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
diaphragm pump
Rated voltage :
12VDC
Pump type :
diaphragm air pump
Packing :
Customized packing
Printing :
Customized printing
Application :
portable nebulizer/ blood pressure
Description

DC Air Pump Motor Mini Air Pump Atomizer Use 12DV Or 6VDC Max Pressure 20PSI

  • Specification
Rated voltage 12.0VDC
Operating condition -10℃~45℃, RH 30%~80%
Storage condition -20℃~60℃, RH 30%~80%
Operating voltage 10.0 - 14.4 VDC
Rated current ≤450mA (DC12.0V at 0mmHg)
Flow rate at no load ≥5.0L/min
Max pressure ≥20psi
Noise Putting a 5 cm sponge under the pump motor, and use noise meter with 30 cm away from the pump motor,the averaged noise shall be less then 62dB , with DC 12.0V from 0 to 20psi.
The lead tension Hanging a 0.5 Kg static load on the terminal , no damage.
Fall test Basic performance and the structure shall not be defected after drop test: with a standard packaging, then drop it at the front,side,and edges part from the height of 50 cm to the concrete floor.


Drawing:

Mini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psiMini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psi

Mini Atomizer Use DC Air Pump Motor 12vcd Or 6vdc Max Pressure 20psi

Application: Portable nebulizer, Inhaler, Atomizer
