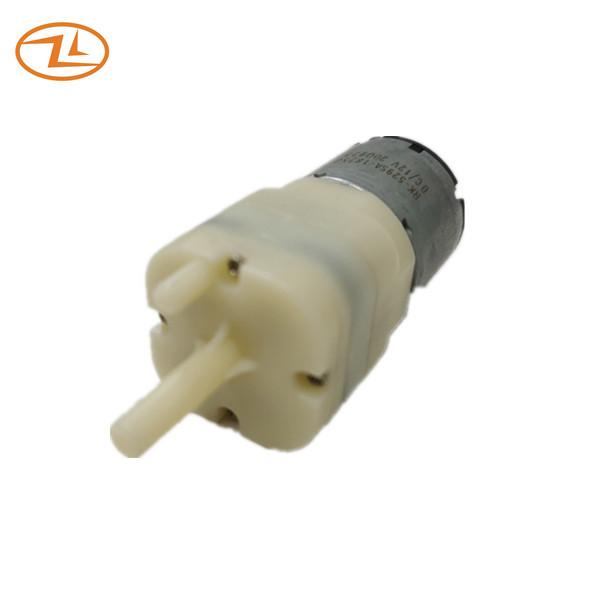

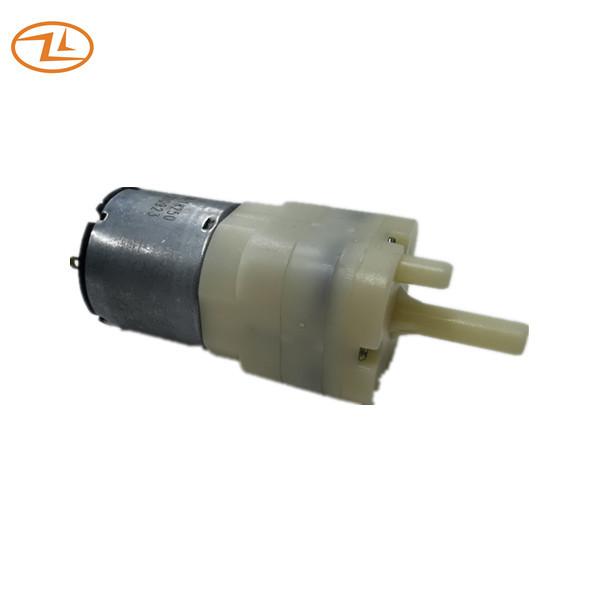

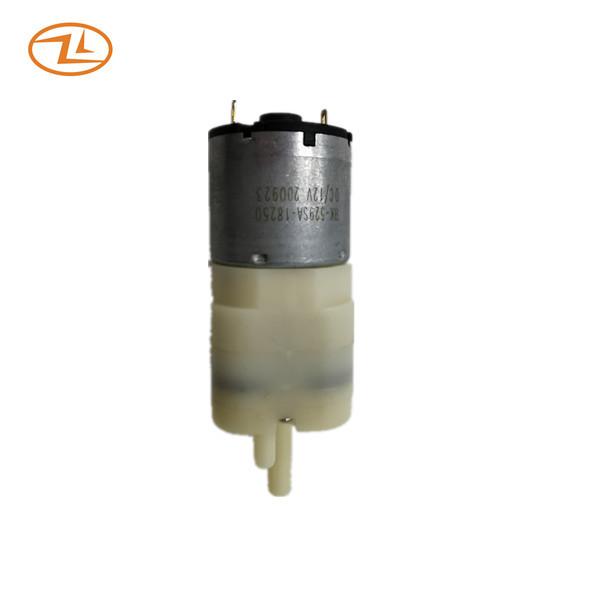

20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc
20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc
20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc
20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc
20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc
20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc
Specifications
Brand Name :
Zhaoli
Model Number :
DC3229PD01
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
diaphragm pump
Rated voltage :
12VDC
Pump type :
diaphragm air pump
Packing :
Customized packing
Printing :
Customized printing
Application :
portable nebulizer/ blood pressure
Description

DC Air Pump For Portable Nebulizer Small Size Long Life 12VDC

  • Operating condition
Test Environment Ambient temperature of 20℃ and relative humidity of 65%RH.
Position Horizontal
Load Air pressure 300mmHg
Operating condition -10℃~45℃, RH 30%~80%
Storage condition -20℃~60℃, RH 30%~80%

  • Electric characteristics
Rated voltage 12.0VDC
Operating voltage 10.0 - 14.4 VDC
Rated current ≤450mA (DC12.0V at 0mmHg)
Flow rate at no load ≥5.0L/min
Max pressure ≥20psi


Drawing:

20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc

20 Psi Portable Nebulizer Micro Diaphragm Pump Long Life 12vdc

Application: Portable nebulizer, Inhaler, Atomizer
