Nebulizer Pressure 300mmhg 12 Volt Diaphragm Air Pump Water Flow 1.2l/M
Nebulizer Pressure 300mmhg 12 Volt Diaphragm Air Pump Water Flow 1.2l/M
Nebulizer Pressure 300mmhg 12 Volt Diaphragm Air Pump Water Flow 1.2l/M
Nebulizer Pressure 300mmhg 12 Volt Diaphragm Air Pump Water Flow 1.2l/M
Specifications
Brand Name :
Zhaoli
Model Number :
DC2430PE03
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
diaphragm pump
Rated voltage :
12VDC
Pump type :
diaphragm air pump
Packing :
Customized packing
Printing :
Customized printing
Application :
portable nebulizer/ blood pressure
Description

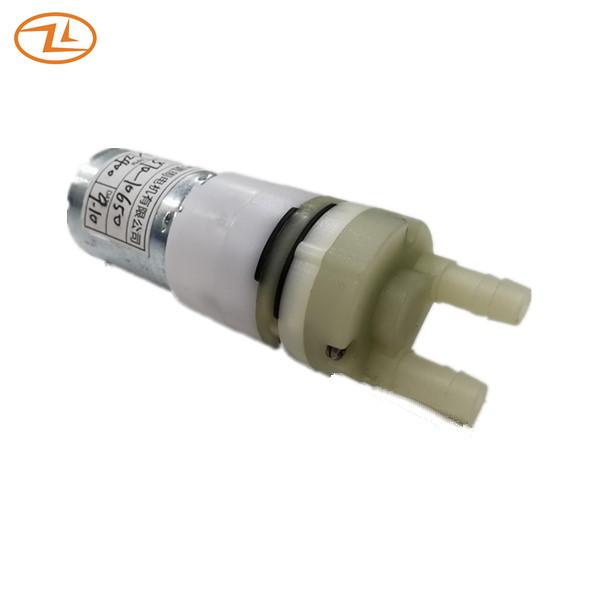

Diaphragm Pump DC Water Pump Air Pressure 300mmHg Water Flow 1.2L/M

Specification:

Rated voltage 12.0VDC
Operating voltage 9.6 - 14.4 VDC
Load Air pressure 300mmHg
Test Environment Ambient temperature of 20℃ and relative humidity of 65%RH.
Air flow(free load) ≥0.8L/min with no load.
Water flow(free load) ≥ 1200mL/min with no load.
Rated current ≤ 400mA
Restart voltage Operating voltage range gas filled pressure untills -30KPa(30 KPa) pineland then add DC9.6V voltage pump should restart.
Noise The sponge of 5 cm underlying is 30 cm away from the noise meter. The dB value measured by DC 12V power supply pumping is less than 55 dB.
Terminal tension Hanging a 0.5 Kg static load on the terminal of the pump will not cause a damage on the pump.
Life test The pump for drawing water, on 60 seconds, stopping for 30 seconds is as one cycle, Doing it for 500 hours, then examine the pump if it is in a good function.


Drawing:
Nebulizer Pressure 300mmhg 12 Volt Diaphragm Air Pump Water Flow 1.2l/M

Application: Tooth cleanier, Waterpik

Nebulizer Pressure 300mmhg 12 Volt Diaphragm Air Pump Water Flow 1.2l/M
