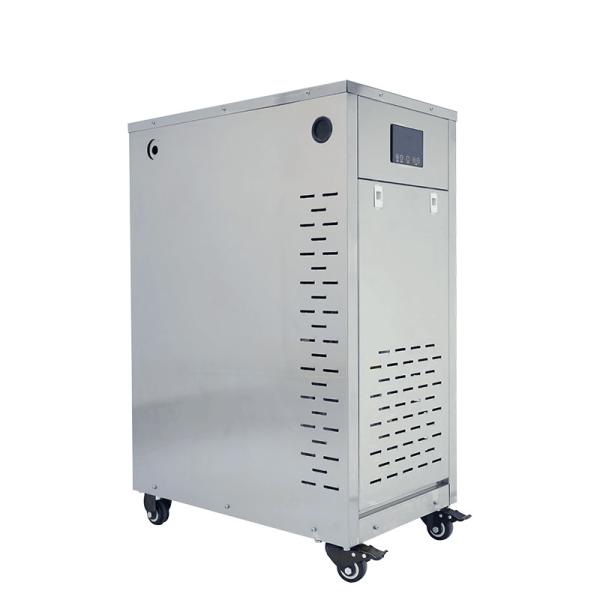

380V 9KW Small Steam Electric Generator High Pressure stainless steel
380V 9KW Small Steam Electric Generator High Pressure stainless steel
Specifications
Brand Name :
Zhongji
Model Number :
SND-15KG-9KW
Certification :
ISO9001, GB
Place of Origin :
Guangdong of China
MOQ :
1 set
Price :
USD471/set
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000set per month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
Rated Temperature :
100℃-170℃
Pressure :
High Pressure
Material :
stainless steel
Rated Voltage :
380V
Control Mode :
Manual/Automatic
Power Supply :
Electric heating
Description

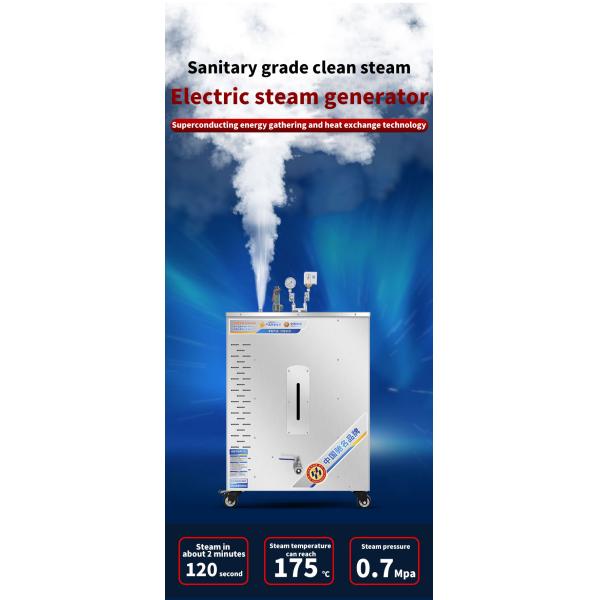

SND-15KG-9KW Electric Steam Generator 0.7Mpa

Description of product :

1. Heating automatic. Easy to install, easy to use

2. Simple circuit, easy to maintain

3. Small in size, save more space

4. The adjustable pressure controller can be adjusted by your need.

5. High quality heater, can adjust steam power

Multiple security Protection:

1. The safety valve relief automatically when the pressure reached the setting pressure.

2. Stop heating automatically when there is no water in the tank.

3. Stop heating automatically when there is no electricity.

4. Stop heating automatically when stainless steel mechanical adjustable pressure controller reached the setting pressure.

Application Range:

Electrci steam generator are commonly used in industries such as food processing, pharmaceuticals, textiles, chemical manufacturing, and power generation. They are also utilized in steam cleaning applications and for steam baths in wellness centers.

It's worth noting that the specific design and features of electric steam generators can vary depending on the manufacturer and intended application.

Technical Parameter:

Steam temperature 170℃
Input power supply Single phase 3 wires 220V/3 phase 5 wires 380V
Alternating current
frequency:50Hz
Leakage switch 32A-40A
Electric current 18A(220w)/13.5A(380w)
Main power cord 6Square mm standard copper wire
Control Gear 1(380V)/Gear 2(220Vand380V Universal version)
Machine size 705*435*1220mm
Water capacity 26L
structure Built-in water tank and water pump
Power of water pump 550W
Diameter of water intake DN15
Diameter of sewage outlet DN25
Diameter of steam outlet DN15
Diameter of safety valve DN15
