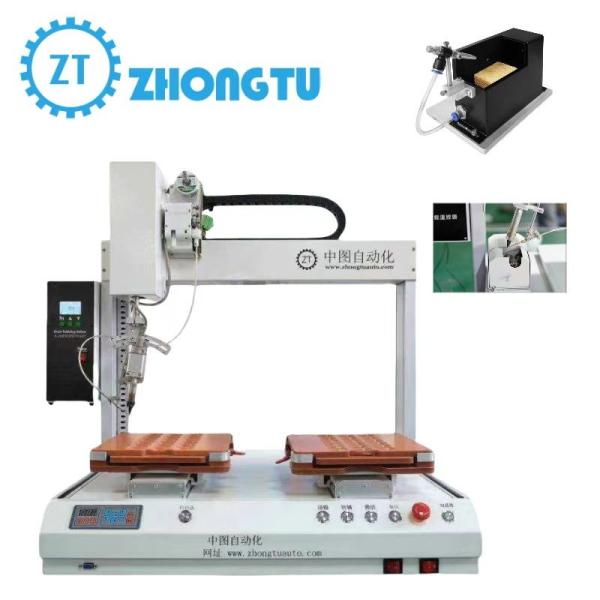

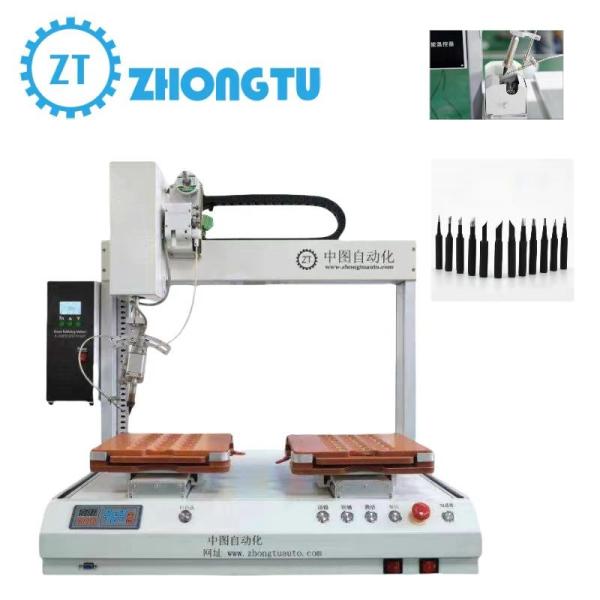

Industrial Fully Automatic Multi Axis Tin Welding Robot With High Efficiency
Industrial Fully Automatic Multi Axis Tin Welding Robot With High Efficiency
Industrial Fully Automatic Multi Axis Tin Welding Robot With High Efficiency
Industrial Fully Automatic Multi Axis Tin Welding Robot With High Efficiency
Specifications
Brand Name :
ZT
Model Number :
ZT-HXJ441-R
Certification :
CE, ISO, RoHS
Place of Origin :
China
MOQ :
1 SET
Price :
USD 3100-3500/SET
Payment Terms :
T/T
Supply Ability :
100SET/Month
Delivery Time :
15-30 Day
Packaging Details :
Wooden box
Product Name :
Automatic Soldering Machine
Core Components :
PLC, Motor
Voltage :
AC 110~230V
Current :
5A
Transport Package :
Wooden Box
Specification :
80*78*85cm
Trademark :
ZT
Origin :
Shenzhen, Guangdong, China
Solder Wire Diameter :
0.5, 0.6, 0.8, 1.0, 1.2mm
Model :
S5331R
Editing Mode :
Teaching Pendant
Xyz Range :
X400*Y:400 *Z100mm
Solder Robert :
soldering robert for PCB
Soldering Iron Tip Material :
Copper
Color :
White
Solder Time :
1.0-1.5s/point
Repeatability Accuracy :
±0.02mm
Soldering Iron Temperature Range :
200-480℃
Air Source :
0.4-0.6MPA
Soldering Iron Holder :
Included
Electronic Parts :
electronic automatic solder machine
Power Consumption :
100W
Description

Industrial Fully Automatic Multi Axis Tin Welding Robot with High Efficiency

An automatic soldering machine is a highly efficient and precise device designed to automate the soldering process in various industries.

Working Principle: It operates based on advanced control systems and precise mechanical structures. Usually, it uses a soldering iron tip heated to a specific temperature to melt the solder wire. The machine can accurately control the amount of solder, the soldering time, and the movement path of the soldering iron, ensuring consistent and high-quality soldering joints.

Components

It mainly consists of a control unit, a soldering iron tips or soldering iron system, a wire feeder mechanism, and a motion control system. The control unit is like the "brain" of the machine, enabling users to set parameters and control the entire soldering process. The soldering gun or soldering iron system provides the necessary heat for soldering, while the wire feeder mechanism supplies the solder wire precisely. The motion control system ensures the accurate movement of the soldering head according to the set path.

Product Parameter

Name:
Automatic Soldering Robot
Place of Origin:
ShenZhen, China
Applicable Industries:
Manufacturing Plant, SMT , DIP
Key Selling Points:
Automatic
Video outgoing-inspection:
Provided
Weight (KG):
65Kg
Marketing Type:
New Product 2024
Voltage:
220/110V 50~60Hz
Warranty period:
1 Yea
Dimensions:
850*750*850mm
Warranty of core components:
3 Years
Solder Wire:
0.6~1.5mm solder wire
Core Components:
PLC
Temperature Accuracy
±3°
Power:
680W
Solder Feeding Speed
1~50mm/s
Current:
5A
Repeate Accuracy
±0.02mm

Specification

Model
ZT-HXJ041R
ZT-HXJ441-R
ZT-HXJ4411-02
ZT-HXJ4411-02R
Fixture Customization
Solder Power
200W
200/400w 600W
200/400W
200/400/600W
Need
Heating Temperature Range
0-550ºC
Machine Axis Number
4axis
4axis
4axis
5axis
Max moving speed
X Axis
400mm
400mm
400mm
400mm/2X
600mm/s
Y Axis
300mm
300mm/2Y
300mm/2Y
300mm/2Y
600mm/s
Z Axis
100mm
100mm
100mm
100mm
400mm/s
R Axis
360°
360°
0
360°
±0.05° Error
Temperature Errors
±2°
Tin Wire Diameter
φ0.6mm-1.5mm
Teaching File Capacity
256MB, up to 999 files, single file up to 1000 points
Air Pressure
4-5kg/cm²
Weight(Kg)
58Kg
68Kg
75Kg
85Kg
Customized
Size(mm)
600*750*850
800*750*850
850*750*850
1000*750*850
To order

Detail Photos

Industrial Fully Automatic Multi Axis Tin Welding Robot With High Efficiency

Our advantage

Industrial Fully Automatic Multi Axis Tin Welding Robot With High Efficiency
1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.
6.Provide Customers With the Most Advanced
System Solutions for Automation Equipment.

Our Services

Pre-Sale
 In Sale

After Sale
1.Product Introduction,

2.Technical Communication,
3.Remote consulting service.
1. Show the product,

2. Explain in detail how to use the product.

3. Answer the questions raised by customers.
1.Support video service.
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years.


FAQ

1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
