Good Stability Melt Pressure Sensor Space Limited Installation Eight Pin Bendix Connector
Good Stability Melt Pressure Sensor Space Limited Installation Eight Pin Bendix Connector
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-128
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Pressure range :
0~1500bar
Electric connector :
5PIN ；6 PIN
Accuracy :
±0.5%FS
Process connector: :
1/2″-20UNF, M14×1.5, M18×1.5（Customer design）
Description

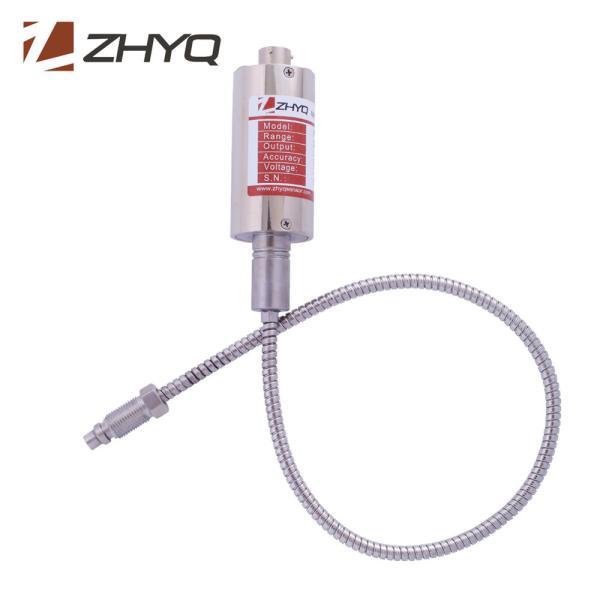

Melt Pressure Transmitter Space Limited Installation Eight Pin Bendix Connector

Description

PT124B-128 Series melt pressure transducer is ideal for space restricted areas applications required, where mounting space is limited. It also has a free-spinning jam nut that simplifies installation. The series comes equipped with six or eight pin bendix connector. It can be interchangeable with the similar world standard products. It is suitable to measure and control the melt pressure in chemical fiber equipment, rubber and plastic machine and so on.

Application

  • Chemical fiber Equipment
  • Polyester equipment

Feature

  • High-standard quality
  • Stainless steel Seal
  • Easy to install
  • Zero & Span Calibration
  • Internal 80% calibration
  • Excellent stability and repetition

Specification

Range: 0….3.5MPa to 0….150MPa
Output: 0~5V; 0~10V; 4-20mA
Accuracy: ±0.5%FS; ±1%FS
Input Voltage: 24 (12-36) V DC
Repeatability: ±0.2%
Construction: Wheatstone bridge
Bridge resistance: 350 ohms±10%
Overload pressure: 1.5×FSO
Internal calibration: 80%±1%
Insulation Resistance: 1000Megohms @50Vdc
Max Diaphragm Temp: 0~400℃
Electric connector: 5PIN, 6PIN
Process connector: 1/2″-20UNF, M14×1.5, M18×1.5(Customer design)
