Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Plastic Molding Melt Pressure Transducer For Single Screw Extrusion Machine
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-121T
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Pressure range :
0~1500bar
Ouptut :
4-20mA（2 Wire）, 0-10V ; 0-5V；0.5-4.5V (PT124B-214) 1.5mV/V , 2 mV/V (PT124G-214)
Process connector :
1/2″-20UNF, M14×1.5, M18×1.5（Customer design）
Electric connector :
5PIN ；6 PIN
Description

Plastic Molding Single Screw Extrusion Machine Melt Pressure Transmitter Pressure Sensor With Thermocouple Output

Description

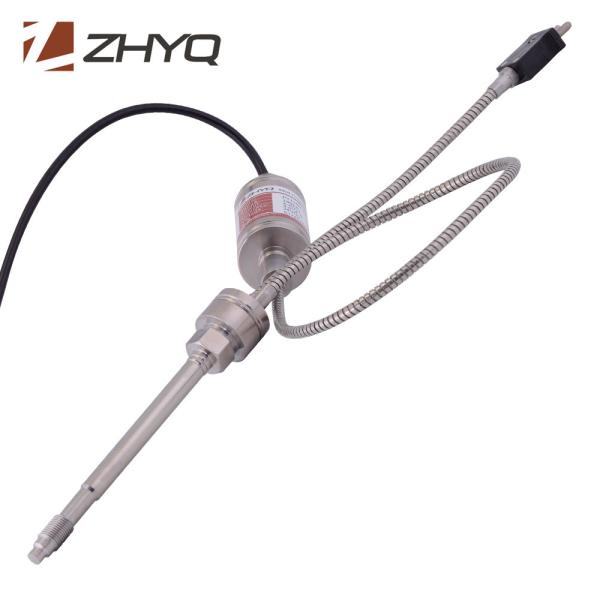

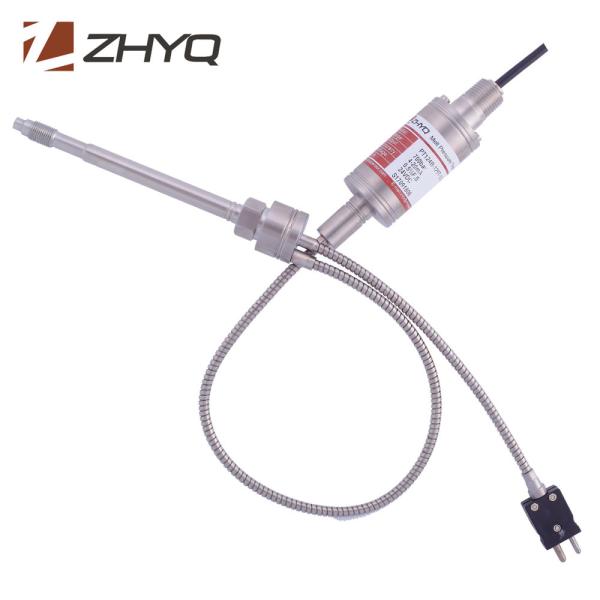

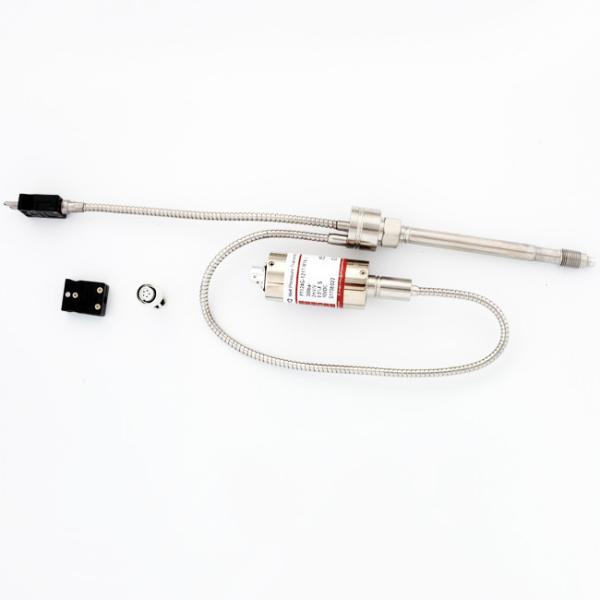

PT124B-121T Series Melt Pressure Transducer (Flexible stem) ,it is with thermocouple.can measure the
pressure and temperature in one point . This series can be utilized together with the PY Series Intelligent
Digital Pressure Instrument. Zero & full span can be adjustable, amplify signal output can be connected
with PLC, with advantages of high precision and reliable pressure measuring and good quality and
internal 80% calibration.

Application

Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid

Feature

Stainless steel welding
Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
Can measure the pressure and temperature in one point

Specification

Pressure range: 0….3.5 MPa to 0….150MPa
Output: 0~5V; 0~10V; 4-20mA;
Input voltage: 24(12~36V)DC
Accuracy:

±1.0%FS ; ±1.5%FS

(including linearity , Repeatability & Hysteresis )
Repeatability: ±0.2% FSO
Construction: Wheatstone bridge
Bridge resistance: Input: 345 Ohms Minimum; Output: 350 Ohms±10%
Overload pressure: 1.5×FSO
Internal shunt calibration: 80%±1%
Insulation Resistance: 200Megohms @100Vdc
Standard wetted Parts Diaphragm coated 15-5PH SST
Mounting Torque 500inch/lbs , maximum
Max. Diaphragm Temp: 0~400℃
Electronic operating temperature: -25℃ -85℃
Electric connector: 5PIN ,6 PIN
Rigid Length: 6”,9” (Customer design)
Flexible Length: 18” , 30” (Customer design)
Thermocouple type: J,K,E,PT100 Optional
Process connection: 1/2″-20UNF, M14×1.5, M18×1.5(Customer design)
