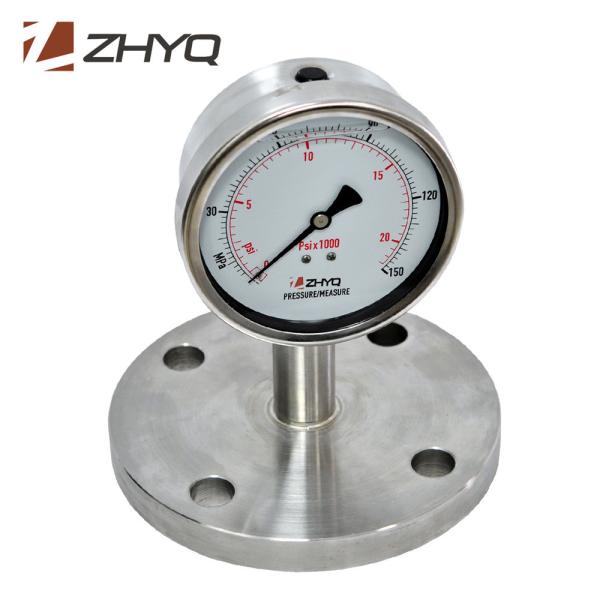

Milk Juice Medicine Diaphragm Type Pressure Gauge Flange Mounting High Reliability
Milk Juice Medicine Diaphragm Type Pressure Gauge Flange Mounting High Reliability
Milk Juice Medicine Diaphragm Type Pressure Gauge Flange Mounting High Reliability
Milk Juice Medicine Diaphragm Type Pressure Gauge Flange Mounting High Reliability
Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-624
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Range :
0~6bar~6000bar
Accuracy :
±1.6%FS
Dial Diameter :
100mm
Process Connection :
Flange Design DN25, DN50, DN80, optional
Description

Milk Juice Medicine Homogenizer Shockproof Flange Mounting Diaphragm Pressure Gauge

Description

PT124Y-624 adopts high performance imported bourdon tube, designed with special shockproof configuration, flange mounting structure, high pressure endurance; Make it is suitable for the process pressure measuring in the machinery such as homogenizer, petroleum and chemistry equipment, fiber equipment, food machinery and so on.

Aplication

Petroleum and chemistry equipment

Fiber equipment

Medicine

Food machinery

Feature

Special mechanical design

To install easily

Good shockproof and corrosion prevention

High reliability and good specification

Specification

Range 0….700bar to 0….6000bar
Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temperature 150℃
Dial Diameter 100mm
Process Connection Flange design


Milk Juice Medicine Diaphragm Type Pressure Gauge Flange Mounting High ReliabilityMilk Juice Medicine Diaphragm Type Pressure Gauge Flange Mounting High Reliability
