Good Performance Tri Clamp Pressure Gauge , Diaphragm Liquid Filled Pressure Gauge
Good Performance Tri Clamp Pressure Gauge , Diaphragm Liquid Filled Pressure Gauge
Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-623
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0~6bar~600bar
Accuracy :
±1.6%FS
Configuration :
Bourdon tube
Over Pressure :
1.5×FS
Dial Diameter :
100mm
Process Connection :
Clamp
Description

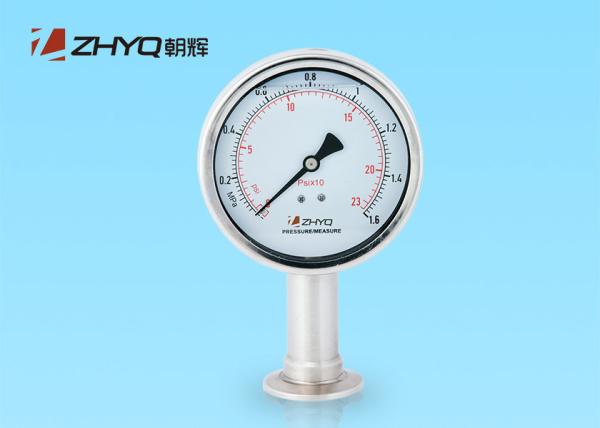

Tri clamp diaphragm liquid filled pressure gauge

PT124Y-623 adopts high performance imported bourdon tube, designed with special shockproof configuration, special clamp mounting structure, high pressure endurance, make it is suitable for the process pressure measuring of many machineries, such as homogenizer, petroleum and chemistry equipment and food machinery.

Application
Petroleum and chemistry equipment
Fiber equipment
Medical equipment
Food machinery

Feature
Mechanical design
To install easily
Good shockproof and corrosion prevention
High reliability and good performance

Specification

Range 0….6bar to 0….600bar
Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temperature 125℃
Dial Diameter 100mm
Process Connection Clamp(Optional)

Ordering Guide

Model Range Output Process connection Other requirement
PT124Y-623 --- none --- ---
Example: PT124Y-623-700Bar-Clamp
