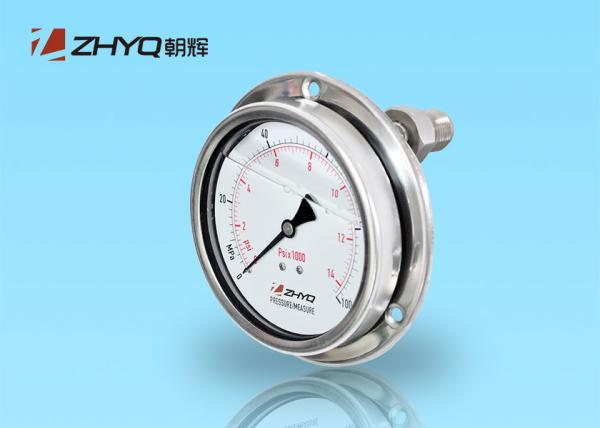

Sanitary Diaphragm Seal Type Pressure Gauge All Stainless Steel Structure
Sanitary Diaphragm Seal Type Pressure Gauge All Stainless Steel Structure
Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-625
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0~6bar~1500bar
Accuracy :
±1.6%FS
Configuration :
Bourdon tube
Over Pressure :
1.5×FS
Dial Diameter :
100mm
Process Connection :
1/2″-20UNF, M14×1.5, M18×1.5
Description

High quality all stainless steel sanitary diaphragm seal pressure gauge

PT124Y-625 adopts high performance imported bourdon tube, designed with special shockproof configuration, special clamp mounting structure, high pressure endurance, make it is suitable for the process pressure measuring of many machineries, such as homogenizer, petroleum and chemistry equipment and food machinery.

Application
Petroleum and chemistry equipment
Fiber equipment
Medical equipment
Food machinery

Feature
Special mechanical design
To install easily
Good shockproof and corrosion prevention
High reliability and good performance

Specification

Range 0-6bar ~1500bar
Accuracy ±1.6%FS
Configuration Bourdon tube
Operation Temperature -10~80℃
Over Pressure 1.5×FS
Max Diaphragm Temperature 125℃
Dial Diameter 100mm
Process Connection 1/2″-20UNF, M14×1.5, M18×1.5(Optional)

Ordering Guide

Model Range Output Process connection Other requirement
PT124Y-625 --- none --- ---
Example: PT124Y-625-700Bar-M20*-1.5
