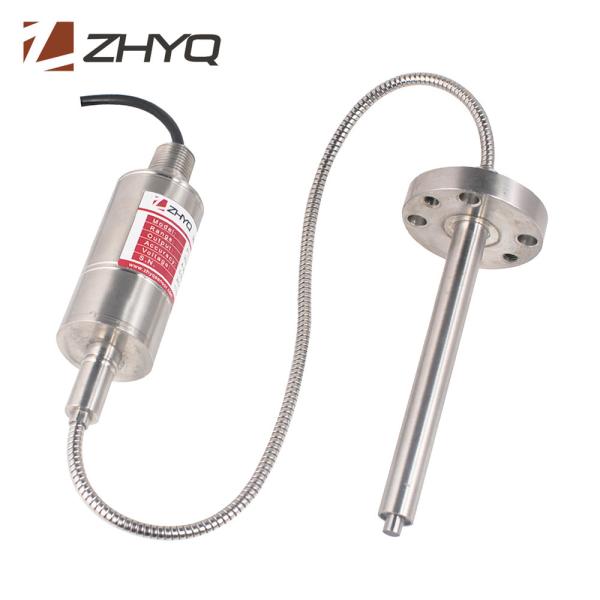

Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-126
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Pressure range :
0~1500bar
Ouptut :
4-20mA（2 Wire）, 0-10V ; 0-5V；0.5-4.5V (PT124B-214) 1.5mV/V , 2 mV/V (PT124G-214)
Electric connector :
5PIN ；6 PIN
Accuracy :
±0.5%FS
Description

Flange Mountingblow Film Machinery Melt Pressure Transmitter 5PIN 6PIN

Description

PT124B-126 Series Melt Pressure Transducer(Flange type)adopts special construction design and excellent alloy elastic membrane to reduce the thermal draft and improve measurement accuracy . The zero & full span can be calibrated, with amplify signal be connected with PLC and 80% calibration inside. It has wide application of pressure measurement & control for melt-temp liquid for chemical and fiber equipment, polyester equipment, etc.

Application

  • Chemical fiber Equipment
  • Polyester equipment
  • Other pressure measurement and control

Feature

  • High-standard quality
  • Stainless steel Seal
  • Easy to install
  • Zero & Span Calibration
  • Internal 80% calibration
  • Excellent stability and repetition

Specification

Range: 0….1MPa to 0….150MPa
Output: 0~5V; 0~10V; 4-20mA; 2mV/V; 3.33mV/V
Accuracy: ±0.5%FS; ±1%FS
Input voltage: 24(12-36V)DC; 10VDC
Repeatability: ±0.2%
Construction: Wheatstone bridge
Bridge resistance: 350 ohms±10%
Overload pressure: 2×FSO
Internal calibration: 80%±1%
Insulation Resistance: 1000Megohms @50Vdc
Max. Diaphragm Temp: 400℃
Electric connector: 5PIN, 6PIN
Process connector: Flange

Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery

Flange Mounting Melt Pressure Transmitter 5 PIN 6 PIN For Blow Film Machinery
