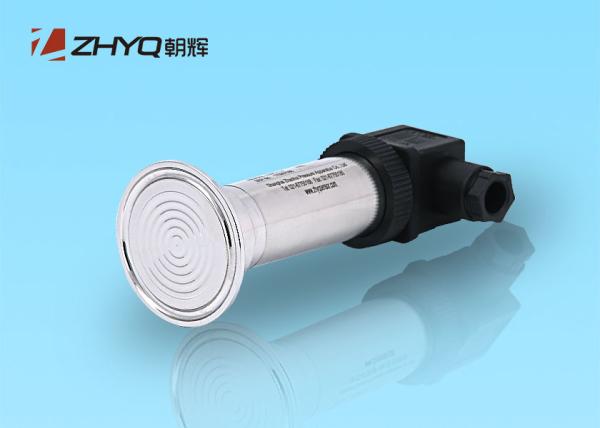

Food Class 100psi 1.5 Inch Tri Clamp Pressure Transmitter Compact Dimension Design
Food Class 100psi 1.5 Inch Tri Clamp Pressure Transmitter Compact Dimension Design
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-217
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
-1 ~ 0~100bar
Accuracy :
0.5%FS; 0.25%FS
Output :
4-20mA,0-10V, 0-5V, 0.5-4.5V
Input voltage :
24V DC
Operate Temperature :
-20~80℃
Overload pressure :
150%FS
Medium material :
Stainless steel (SS304 or SS316)
Electric connector :
Hirschman（DIN）, M12,4pin, 5pin connector, grand cable
Description

Food class 100psi 1.5 inch tri-clamp pressure transmitter

Adopting the special sensor chip with exact accuracy and high stability, PT124B-217(coupling connection type) is suitable for pressure measuring and controlling in the clean asepsis conditions and the conditions which are easy to block.
Application
Process engineering
Chemical industry
Foodstuff industry
Paper industry
Feature
Pressure Range:-1…0…100bar
Various signal output for industrial standard
Wide pressure range
High accuracy, high stability
Compact dimension design with high-standard quality

Specification

Range: -1…0…100bar
Accuracy: 0.5%FS
Nonlinearity: 0.2%FS
Reliability: 0.05%FS
Output: 4-20mA(2 Wire), 0-10V ; 0-5V; 0.5-4.5V (3 Wire )
Input voltage: 24(12~36)VDC (Amplify signal)
Operating Temperature: -20~80℃
Compensated temperature: 0~70℃
Overload pressure: 150%FS
Medium material: stainless steel or Hardening Aluminum
Electric connector:

Hirschman(DIN), M12,4pin, Bendix connector, cable, etc

(Customer design)
Process connector: 0.5″, 1″, 1.5″, 2”

Ordering Guide

Model Range(bar) Output Screw Thread Electric connection Other requirement
PT124B-217 --- --- --- --- ---
Example: PT124B-217-50Bar-4/20mA-1.5″-Hirschman
