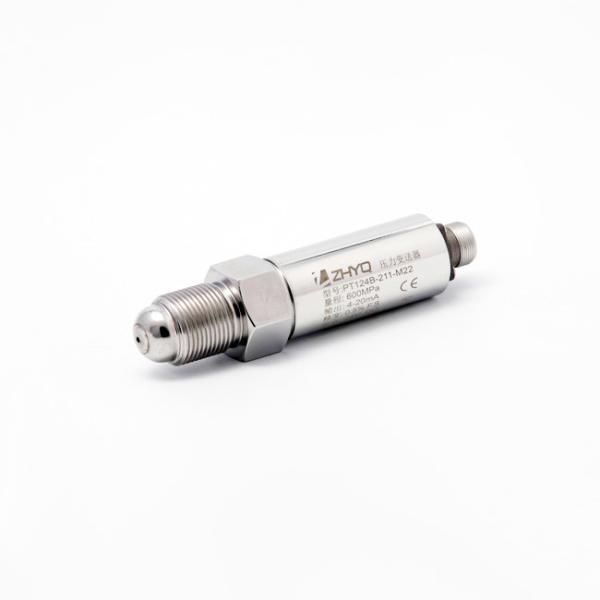

Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-211
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Pressure range :
0~400bar
Ouptut :
4-20mA,0-10V, 0-5V, 0.5-4.5V, 1.5mV/V , 2mV/V
Process connector :
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5（Customer design）
Electric connector :
Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional
Description

Industrial Pressure Transmitter Air Water Oil Pressure Transducer 4-20mA

Description

The PT124B/G-211 pressure transducer adopt micro fused Technology which is we introduce we from MEAS (USA), it’s a new price performance standard for low cost, high volume, commercial and industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly. The transducer pressure cavity is machined from a solid piece of stainless steel. It’s a leak-proof, all metal sealed system. No O-rings, welds or organics exposed to the pressure media. The durability is excellent corrosive fluids.

Application

Pumps and Compressors

Hydraulic/Pneumatic Systems

Automotive Test Systems

Energy and Water Management

Agriculture – Sprayers and Dusters

Refrigeration – Freon and Ammonia Based

General Pressure Measurements

Feature

One Piece Stainless Steel Construction
Better than 0.5% combined error
mV or Amplified or Voltage Outputs
Wide Operating Temperature Range

Specification

Range: 0~10bar ~400bar
Accuracy: 0.5%FS
Nonlinearity: Full range x 0.2%
Reliability: Full range x 0.05%
Output:

4-20mA,0-10V, 0-5V, 1-5V, 0.5-4.5V (PT124B-211) ;

1.5mV/V , 2mV/V (PT124G-211)
Input voltage:

24VDC ( 4-20mA,0-10V, 0-5V output )

5 V DC ( 0.5-4.5V output )

10V DC ( 1.5mV/V , 2mV/V output )
Operating temperature: -20~80℃
Compensated temperature: 0~75℃
Overload pressure: 150%FS
Burst pressure 300%FS
Wetted Parts: stainless steel
Electric connector: Hirschman(DIN), M12,4pin, 5pin connector, grand cable and optional
Process connector: G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5 (Customer design)
Housing Shell Diameter: ￠22mm,￠23mm , ￠26mm , ￠38mm optional

Precise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mAPrecise Industrial Pressure Transmitter , Air Water Oil Pressure Transducer 4-20mA
