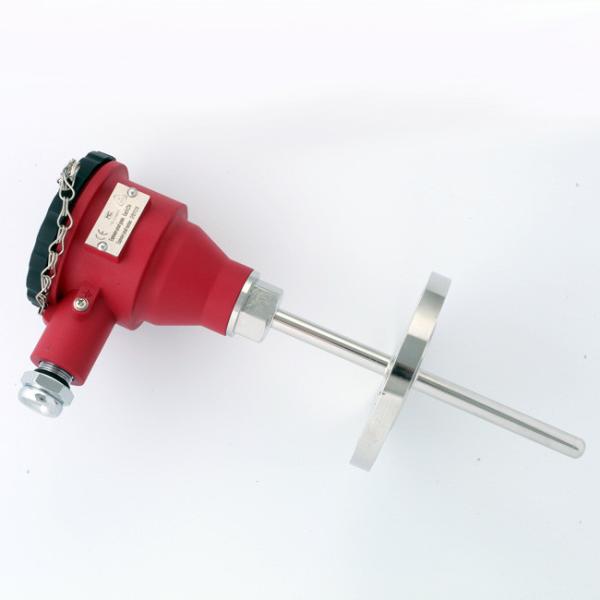

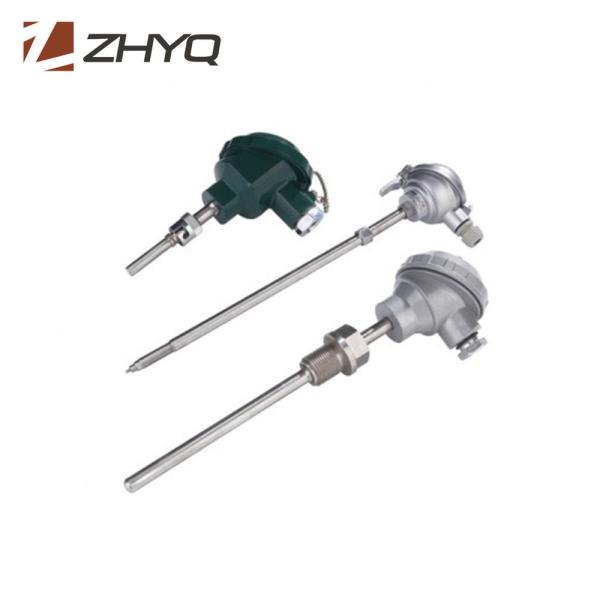

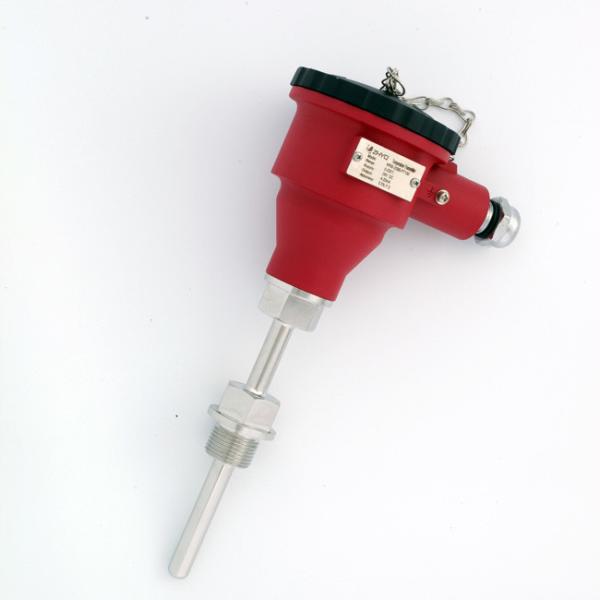

Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
Specifications
Brand Name :
ZHYQ
Model Number :
WR-202
Certification :
SIL,ROHS,CE, ATEX, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Temperature range: :
-200℃ to 1300℃
Process connection :
No fixed device, screw thread connection, side flange, mounting and fixed flange mounting
Sensing element :
K E J T PT100 CU50 PT1000
Power Supply :
24(12~36)VDC (amplified circuit output)，10(6~12)VDC (mV signal)
Description

Screw Thread Connection K E J T PT100 CU50 PT1000 Explosion Proof Industrial Temperature Sensor transducer

Description

Industrial temperature transducer adopts excellent temperature sensing elements, consummate encapsulation technology and perfect assemble process to insure the quality and performance. This series has the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diversiform installation etc. It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food etc.


Feature

◆ K E J T PT100 CU50 PT1000

◆ 0 to 1300℃ measurement range

◆ Immersion lengths to match applications

◆ Spring or armor adjustable

Specification

element: K,E,J,T,PT100,CU50; PT1000
Accuracy: A class:+/- (0.15+0.2%t);　 B class:+/-(0.3+0.5%t)
Range: 0-1300℃
Housing: 304/316stainless steel or others
Out put: 4-20mA(two wires), three wires,four wires.
Power Supply: 24(12~36)VDC (amplified circuit output),10(6~12)VDC (mV signal)
Connection: No fixed device, screw thread connection, side flange, mounting and fixed flange mounting


Thread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature SensorThread Connection Industrial Temperature Sensor , K E J T PT100 CU50 PT1000 Temperature Sensor
