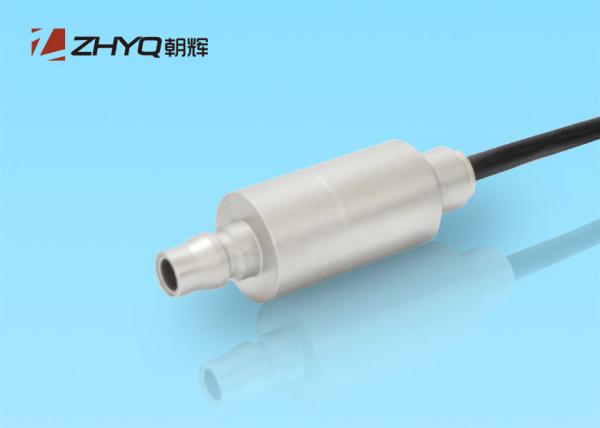

Quick Socked Type Liquid Level Transmitter High Accuracy Good Stability PT124B-223
Quick Socked Type Liquid Level Transmitter High Accuracy Good Stability PT124B-223
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-223
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0~50mH2O
Output :
4-20mA（2 Wire），0-5V， 0-10V（3 Wire）
Power Supply :
2.7~5.5VDC, 8~30VDC
Accuracy :
0.25%FS
Overload :
150%FS
Response Time :
<10ms
Housing material :
SS304
Protection Class :
IP68
Description
Quick socked type Liquid level transmitter PT124B-223

PT124B-223 (Quick socked type) Adopts digital circuit compensated technology, with the advantages of high accuracy, high stability, small volume. The digital signal output designed directly by ZHYQ, this model adopts ZAC wire one-wire serial interface, suitable for liquid pressure measuring and controlling for water monitoring, sewage treatment and other industrial process.

Application
Petroleum, Metallurgy, Irrigation works
City water-supplying system
Hydrology prospection

Feature
Digital circuit compensated technology
Corrosion proof, moist proof, leakage proof
High accuracy, sound stability
Small volume (plug and play)
Digital signal output

Specification

Range:

0.5mH2O, 1mH2O, 3mH2O, 5mH2O, 10mH2O, 15mH2O, 20mH2O,

30mH2O, 50mH2O, 100mH2O;
Accuracy: 0.25%FS
Output: Digital signal, simulant signal for option 4-20mA, 0-5V, 0.5-4.5V
Input voltage: 2.7~5.5VDC, 8~30VDC
Work current: About 1mA
Response: 1mS(Typical)
Power: 5mW @DC5V (Typical)
Stability: 0.2%FS/y
Operating Temperature: -40~125℃
Compensated temperature: 0~80℃
Overload pressure: 150%FS
Medium material: stainless steel
Electric connector: Cable
Protection class: IP68

Ordering Guide

Model Range(mH2O) Output Cable length Other requirement
PT124B-223 --- --- --- ---
Example:PT124B-223-20m H2O -4/20mA-25m cable
