Hydraulic Marine Liquid Level Transmitter Strong Acidity Alkaline Corrosive Resistance
Hydraulic Marine Liquid Level Transmitter Strong Acidity Alkaline Corrosive Resistance
Hydraulic Marine Liquid Level Transmitter Strong Acidity Alkaline Corrosive Resistance
Hydraulic Marine Liquid Level Transmitter Strong Acidity Alkaline Corrosive Resistance
Hydraulic Marine Liquid Level Transmitter Strong Acidity Alkaline Corrosive Resistance
Hydraulic Marine Liquid Level Transmitter Strong Acidity Alkaline Corrosive Resistance
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-224
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Pressure range :
0….1mH2O to 0….50mH2O
Ouptut :
4-20mA（2 Wire）, 0-5V；0-10V（3 Wire）
Electric connector :
Vented Cable
Accuracy :
0.25%FS ; 0.5%FS(Including Linearity ,Repeatability & Hysteresis)
Process Connection :
Submersion type/ threw -in type
Description

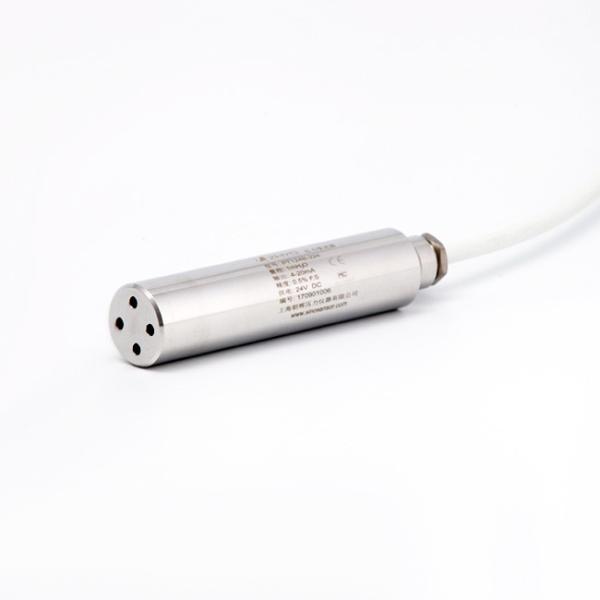

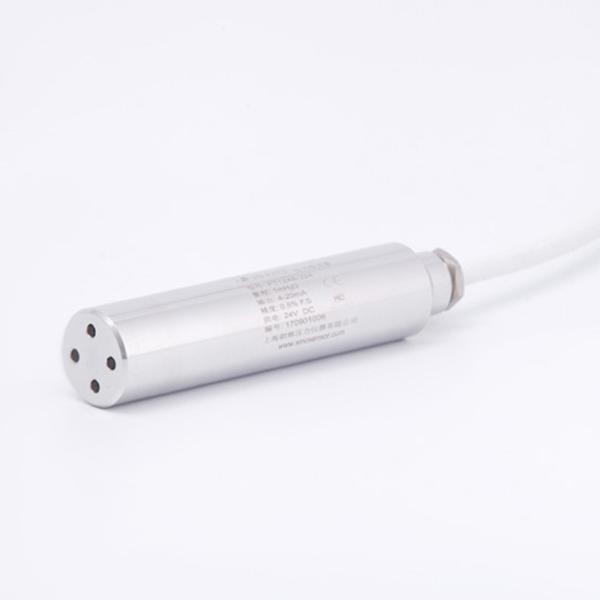

Hydraulic Marine Strong Acidity Alkaline Corrosive Resistance Immersion Liquid Level Transmitter

Description

PT124B-224 Series is immersion type corrosive-resistance Lever sensor, it can convert various
changeable level high into standard current signal, so as to transferring to the operating control room
and so as for Instrument’s or computer device’s converging display, alarm or auto-control.
This level sensor can be used for detecting the level of various strong corrosive liquid. The probe and
cable of the level sensor adopt Teflon, it can directly deep into the container to sense the changes of the
liquid level, the transmitter adopts full solidified and sealed module structure. It’s advantages are
stronger anti-corrosive, strong acidity or alkaline liquid ,petroleum, metallurgy, Hydraulic, Chemical
liquid ,simply structure, easy to install, versatility .

Application

Liquid level measuring
Building automation, constant pressure water supply
Metallurgy, machine, Environmental Protection
Medical treatment, marine , seawater
strong acidity or alkaline liquid ,petroleum, metallurgy
Hydraulic, Chemical liquid city water supply,
sewage treatment, hygrometry and etc.

Feature

Digital circuit compensated technology
Moist proof, leakage proof
Local display
High accuracy, good stability

Specification

Wide measuring ranges
Corrosion Proof, moist proof, frost proof, seepage prevention
Various signal output for industrial standard, flexible calibration
High accuracy, good stability
Immersion type , easy install
