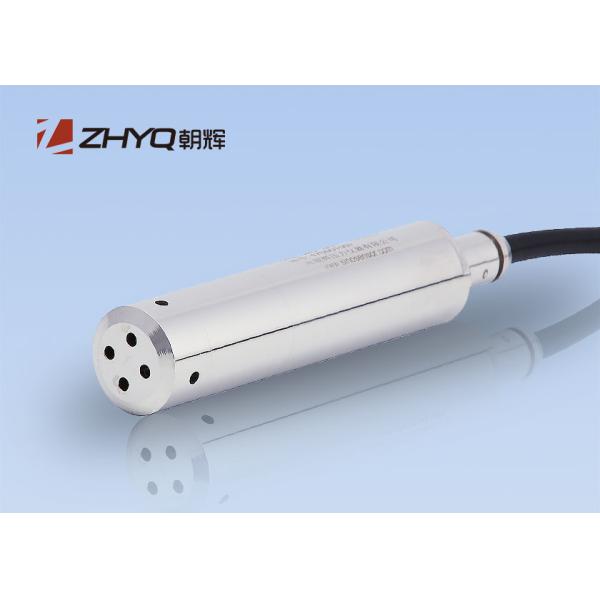

Immersion Type Liquid Level Transmitter Wide Measuring Ranges PT124B-220
Immersion Type Liquid Level Transmitter Wide Measuring Ranges PT124B-220
Immersion Type Liquid Level Transmitter Wide Measuring Ranges PT124B-220
Immersion Type Liquid Level Transmitter Wide Measuring Ranges PT124B-220
Immersion Type Liquid Level Transmitter Wide Measuring Ranges PT124B-220
Immersion Type Liquid Level Transmitter Wide Measuring Ranges PT124B-220
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-220
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0…1mH2O to 0…50mH2O
Output :
4-20mA（2 Wire），0-5V， 0-10V（3 Wire）
Power Supply :
24(12~36)V DC
Accuracy :
0.25%FS ; 0.5%FS
Overload :
150%FS
Response Time :
<10ms
Housing material :
SS304
Protection Class :
IP68
Description
Liquid level transmitter immersion type wide measuring ranges PT124B-220
PT124B-220 Series is the standard immersion type Lever sensor, it can convert various changeable level high into standard current signal, so as to transferring to the operating control room and so as for Instrument’s or computer device’s converging display, alarm or auto-control.
The consummate encapsulation technology and perfect assembly process insure the quality and performance of this series with high stability, leakage proof. it can be used for liquid measuring for petroleum, metallurgy, Hydraulic, city water supply, hygrometry and etc.
Application
Level measuring
Building automation, constant pressure water supply
Metallurgy machine, Environmental Protection
Medical treatment, city water supply
Petroleum , oil
Feature
Wide measuring ranges
Moist proof, frost proof, seepage prevention
Various signal output for industrial standard, flexible calibration
High accuracy, good stability
Immersion type , easy install
Specification
Pressure Range: 0…1mH2O to 0…50mH2O
Output: 4-20mA(2 Wire),0-5V, 0-10V(3 Wire)
Power Supply: 24(12~36)VDC
Accuracy 0.25%FS ; 0.5%FS(Including Linearity, Repeatability & Hysteresis)
Overload : 150%FS
Response Time: <10ms
Long Time Stability: ≤+/- 0.2%FS/ Y
Repeatability: ≤+/- 0.2%FSO
Housing material SS304
Vented cable material PP
Operation Temperature: -10~80℃
Compensated Temperature: 0~70℃
Process Connection Submersion type/ threw -in type
Housing Shell Material: SS304
Vented Cable Material: Polyethylene , Polyurethane
Electric Connector: Direct cable
Protection Class: IP68

Ordeing Guide

Model Range(mH2O) Output Cable length Other requirement
PT124B-220 --- --- --- ---
Example:PT124B-220-20m H2O -4/20mA-25m cable
