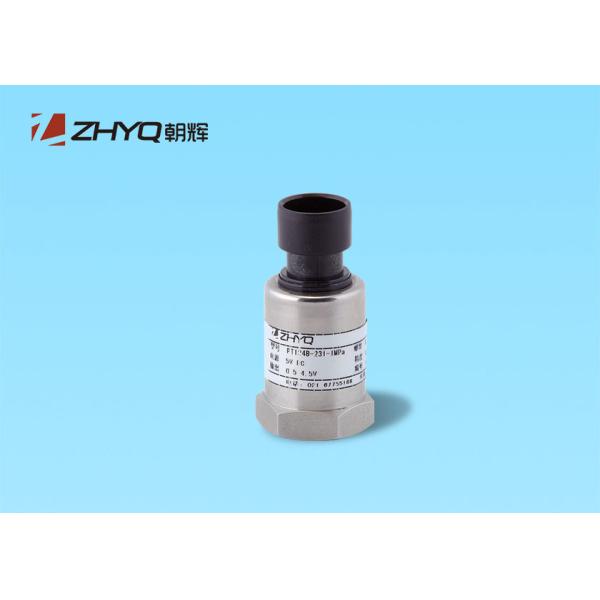

Customized Air Compressor Pressure Transmitter , 0.5-4.5V Air Compressor Pressure Sensor
Customized Air Compressor Pressure Transmitter , 0.5-4.5V Air Compressor Pressure Sensor
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-231
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0….1bar to 0….100bar
Accuracy :
0.5%FS; 1%FS
Output :
0.5-4.5V; 0-5V ; 1-5V; 4-20mA,
Input Voltage :
24(12-36V)DC
Operating Temperature :
-20℃~100℃
Over Pressure :
150%FS
Electric Connection :
Packard connector
Process Connection :
G1/4, 1/4NPT,1/8NPT, 7/16-20UNF(Optional)
Description

Low Cost 4-20mA 0.5-4.5V Air Compressor Pressure Sensor Transmitter

The PT124B-231 series adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling.

Application
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring
Coolant pressure measuring

Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options

Specification

Range 0….1bar to 0….100bar
Accuracy 0.5%FS ; 1%FS
Linear 0.02%FS
Reliability 0.05%FS
Output 4-20mA, 0-5V, 0.5-4.5V,1-5V
Input Voltage 24(8-36V)DC
Operating Temperature -20℃~100℃
Temperature Compensation -10~65℃(Standard Compensation)
Over Pressure 150%FS
Case Material 304SS
Electric connection Special Packard connector
Process connection G1/4, 1/4NPT,1/8NPT, 7/16-20UNF(Optional)

Ordering Guide

Model Range Output Process Connection Electric Connection Other requirement
PT124B-231 --- --- --- --- ---
Example: PT124B-231-16Bar-4/20mA-7/16F-Packard connector
