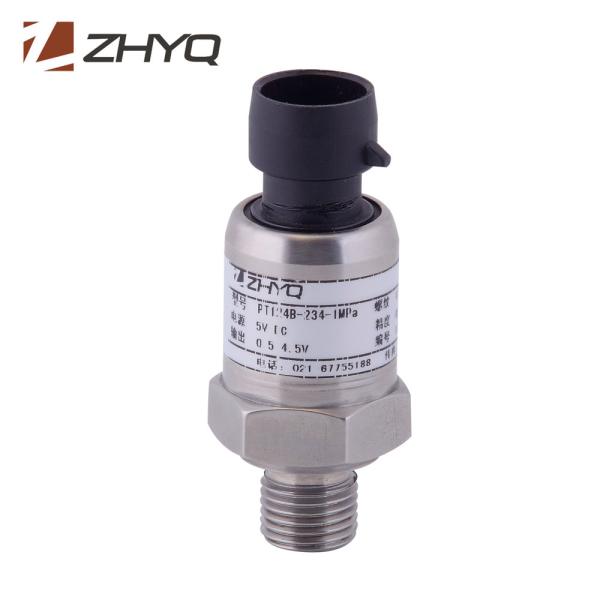

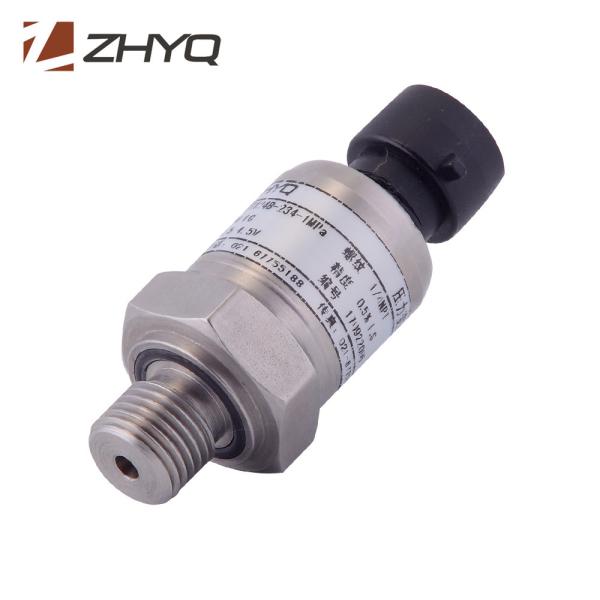

Durable Air Compressor Pressure Sensor For Agricultural Chemical Equipment
Durable Air Compressor Pressure Sensor For Agricultural Chemical Equipment
Durable Air Compressor Pressure Sensor For Agricultural Chemical Equipment
Durable Air Compressor Pressure Sensor For Agricultural Chemical Equipment
Specifications
Brand Name :
ZHYQ
Model Number :
PT124B-233
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Range :
0….1bar to 0….60bar
Accuracy :
0.5%FS, 1%FS
Output :
4-20mA, 0-5V, 0.5-4.5V,1-5V
Process connector :
Z1/4, 1/4NPT, 1/8NPT (Optional)
Description

Agricultural Chemical Equipment Air Compressor Pressure Transmitter

Description

The PT124B-234 series adopts diffused silicon or ceramic piezoresistive sensor chip, with compact configuration, easy to install, and special valve pin design for lead pressure port, perfect electrical performance and long-term stability make it the idea choice for the air-condition and compressor pressure measuring and controlling. This series can replace the similar type of other products, and it can meet the requirement of various compressors and refrigeration equipments.

Application

Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic pressure system
Gas tank pressure monitoring

Feature

Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeatability/Hysteresis
Special design for customer
Many OEM options

Specification

Range 0….1bar to 0….60bar
Accuracy 0.5%FS; 1%FS
Linear 0.02%FS
Reliability 0.05%FS
Output 0.5-4.5V; 0-5V ; 1-5V; 4-20mA,
Input Voltage 24(5-36V)DC
Operating Temperature -20℃~100℃
Compensation Temperature -10~65℃(Standard compensation)
Over Pressure 150%FS
Case material 304SS
Process Connection Z1/4, 1/4NPT, 1/8NPT (Optional)
