Accurate Melt Pressure Gauge PT124Y-614 For High Temperature Steam Equipment
Accurate Melt Pressure Gauge PT124Y-614 For High Temperature Steam Equipment
Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-614
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0….1MPa to 0….150MPa
Accuracy :
±1.6%FS
Configuration :
Bourdon tube
Over Pressure :
1.5×FS
Max Diaphragm Temp :
350℃
Dial Diameter :
100mm
Description

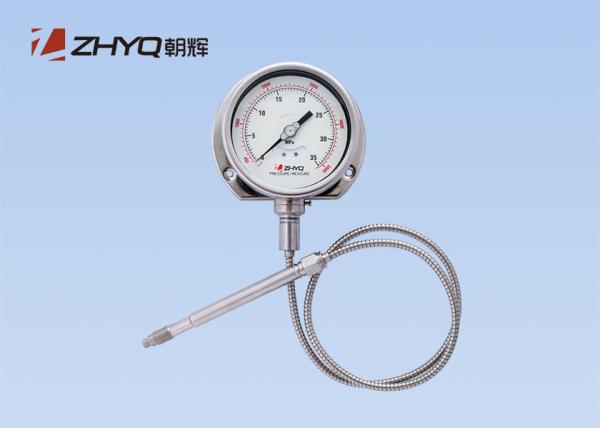

Flexible stem melt pressure gauge PT124Y-614 for equipment of high temperature steam
PT124Y-614 adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
Application
Chemical fibre and filature
Rubber & plastic machinery
The equipment of high temperature steam
Feature
Direct local reading design
Customer defined pressure gauge
Install easily, high reliability
Zero adjustment

Specification

Range 0….1MPa to 0….150MPa
Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temperature 350℃
Dial Diameter 100mm
Flexible Length 0.5…..5M
Process Connection 1/2″-20UNF, M14×1.5, M18×1.5(Optional)

Ordering Guide

Model Range Output Rigid &Flexible length Process connection Other requirement
PT124Y-614 --- none --- --- ---
Example: PT124Y-614-350Bar-6″/18”-1/2-20UNF
