Gas Liquid Air Absolute Sealed Gauge Pressure Sensor With Precise Compensation
Gas Liquid Air Absolute Sealed Gauge Pressure Sensor With Precise Compensation
Gas Liquid Air Absolute Sealed Gauge Pressure Sensor With Precise Compensation
Gas Liquid Air Absolute Sealed Gauge Pressure Sensor With Precise Compensation
Specifications
Brand Name :
ZHYQ
Model Number :
PT124G-3100
Certification :
SIL,ROHS,CE, ATEX, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Pressure range :
0kPa～7kPa…70MPa
Power supply :
≤2.0mA DC; ≤10V DC
Input impedance :
3kΩ～8kΩ
Insulation resistor :
100MΩ, 100VDC
Description

Gas Liquid Air Gauge Absolute Sealed Gauge Pressure OEM Piezoresistive Pressure Sensor

Description

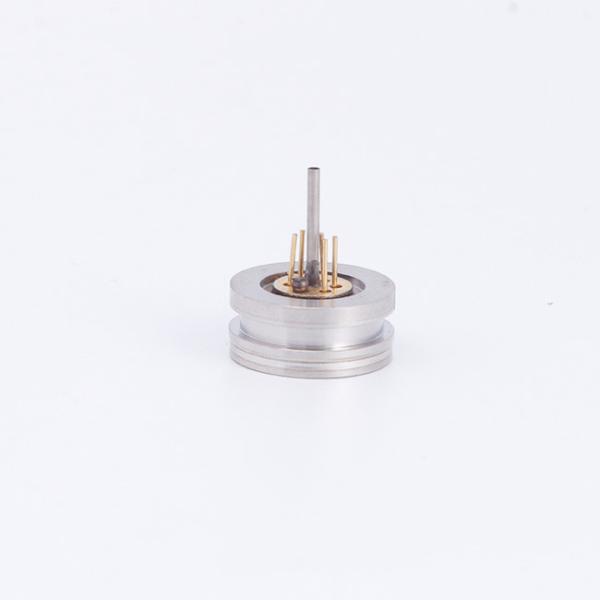

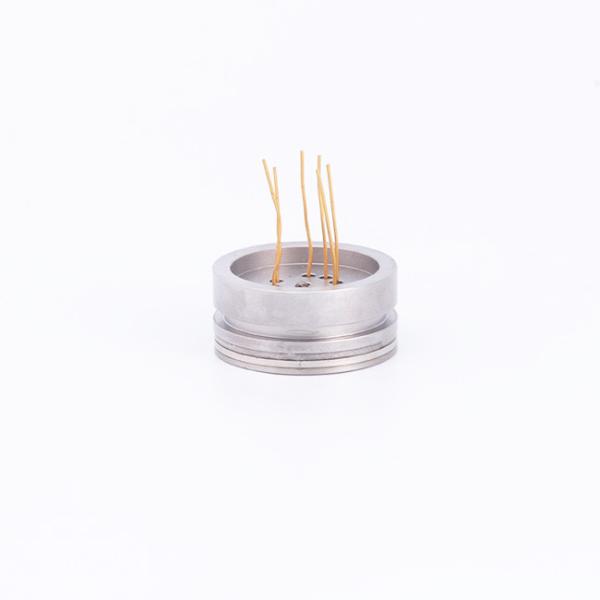

PT124G-3100 high stable OEM sensor is the piezoresistive pressure sensor designed with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Ф19mm.

Widely temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitted onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.

PT124G-3100 pressure sensor is inspected and screened on automatic production line, testing and checking time after time strictly. It is widely used for various pressure measurement fields.

Application

· Industrial process control

· Level measurement

· Gas, liquid pressure measurement

· Pressure checking meter

· Pressure calibrator

· Liquid pressure system and switch

· Cooling equipment and air conditioning system

· Aviation and navigation inspection


Feature

· Pressure range 0kPa～7kPa…70MPa

· Gauge, absolute, sealed gauge

· Constant current / Constant Voltage power supply

· Isolated construction, enable to measure various media

· Φ19mm standard OEM pressure sensor

· Full stainless steel 316L

· Wide temperature compensation -10℃～80℃

· Long-term stability ±0.1%FS/year

Specification

Item (1) Min. Typ. Max. Units
Linearity ±0.2 ±0.25 %FS,BFSL
Repeatability ±0.05 ±0.075 %FS
Hysteresis ±0.05 ±0.075 %FS
Zero output ±2 mV DC
FS output (2) 70 mV DC
Zero thermal error (3) ±0.75 ±1.0 %FS,@35℃
Span thermal error ±0.75 ±1.0 %FS,@35℃
Compensated temp. range

-10～80

0～70(7kPa,20 kPa,35 kPa)

 ℃
Working temp. range -40～125 ℃
Storage temp. range -40～125 ℃
Stability error ±0.1 ±0.2 %FS/year

(1) Testing at basic condition

(2) For range code 0C, FS output ≥45mV

(3) For rang code 0C, Zero thermal error≤1.5%FS
