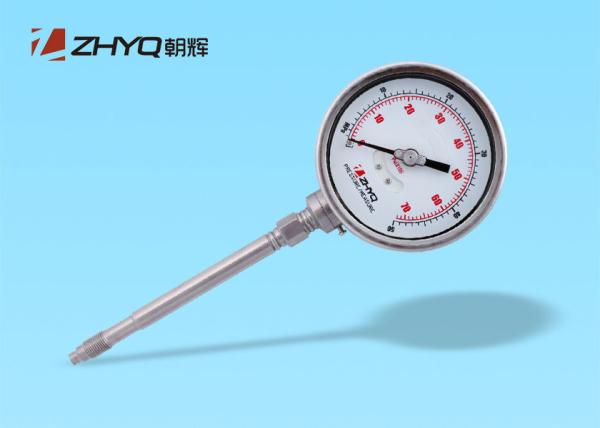

Plastic Extrusion Melt Pressure Gauge , High Temp Pressure Gauge Direct Reading
Plastic Extrusion Melt Pressure Gauge , High Temp Pressure Gauge Direct Reading
Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-610
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000 PCS / Week
Delivery Time :
7-10 days
Packaging Details :
Carton
Range :
0….16MPa to 0….150MPa
Accuracy :
±1.6%FS
Configuration :
Bourdon tube
Over Pressure :
1.5×FS
Max Diaphragm Temp :
350℃
Dial Diameter :
100mm
Description
High temperature melt pressure gauge for plastic extrusion
PT124Y-610 model adopts the original German packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.
Application
Chemical fibre and filature
Rubber & plastic machinery
The equipment of high temperature steam
Feature
Direct, local reading
Mechanical design
Stem-up and stem-down version
Customer defined pressure gauge
Install easily, high reliability
Zero adjustment

Specification

Ranges 0….16MPa to 0….150MPa
Accuracy ±1.6%FS,
Repeatability ±0.2%
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temp. 350℃
Dial Diameter 100mm
Process Connection 1/2″-20UNF, M14×1.5, M18×1.5(Optional)

Ordering Guide

Model Range Output Snout Length Process connection Optional
PT124Y-610 --- NO --- --- ---
Example:PT124Y-610-350Bar-6″-1/2-20UNF

Product tags

melt pressure gauge

,

high temperature pressure gauge

,

plastic pressure gauge
