Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-614
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Range :
0….16MPa to 0….150MPa
Accuracy :
±1.6%FS
Dial Diameter :
100mm
Process Connection :
1/2″-20UNF, M14×1.5, M18×1.5（Optional）
Description

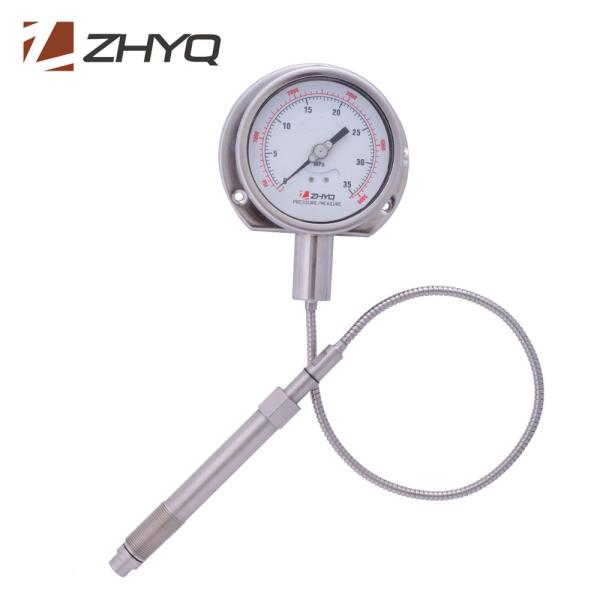

High Temperature Steam Flexible Stem Melt Pressure Gauge

Description

PT124Y-614 adopts the original packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.

Aplication

Chemical fiber and filature

Rubber & plastic machinery

The equipment of high temperature steam

Feature

Direct local reading design

Customer defined pressure gauge

Install easily, high reliability

Zero adjustment

Specification

Range 0….1MPa to 0….150MPa
Accuracy ±1.6%FS
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temperature 350℃
Dial Diameter 100mm
Flexible Length 0.5…..5M
Process Connection 1/2″-20UNF, M14×1.5, M18×1.5(Optional)
