Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
Specifications
Brand Name :
ZHYQ
Model Number :
PT124Y-610
Certification :
CE, ROHS, SIL, etc
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
within 7 days
Packaging Details :
1 piece per package or as customer's request
Range :
0….16MPa to 0….150MPa
Accuracy :
±1.6%FS
Dial Diameter :
100mm
Process Connection :
1/2″-20UNF, M14×1.5, M18×1.5（Optional）
Description

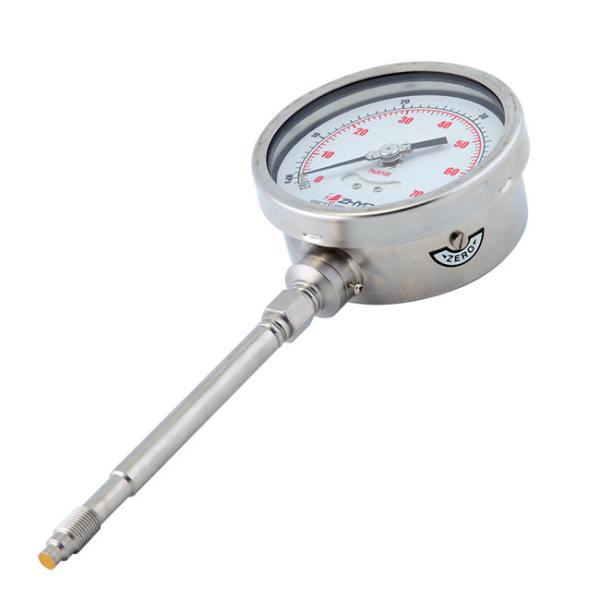

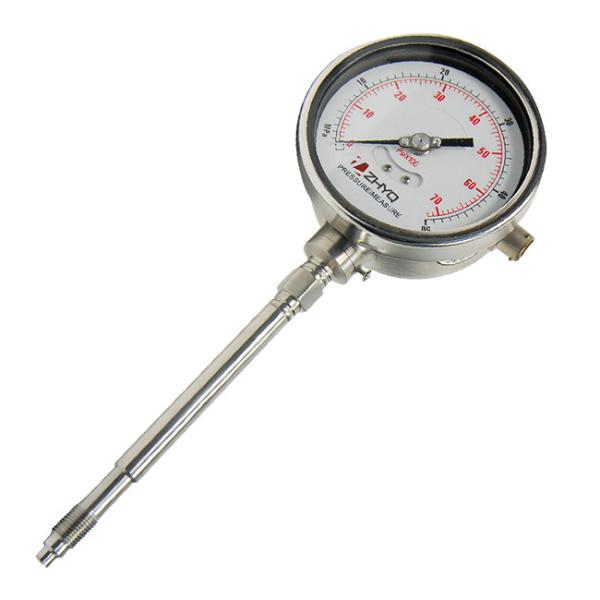

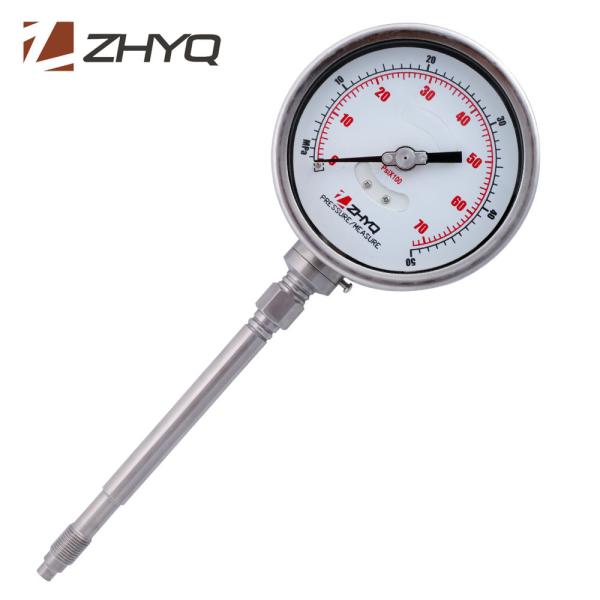

Rubber Plastic Machinery Rigid Stem Bourdon Tube Melt Pressure Gauge

Description

PT124Y-610 model adopts the original German packaging machine stamen, and designed with all stainless steel structure, isolated diaphragm and local index display. With dial plate’s stem-up and stem-down versions, the gauge head can be rotated 360°for unobstructed viewing.

Aplication

Chemical fibre and filature

Rubber & plastic machinery

The equipment of high temperature steam

Feature

Direct, local reading

Mechanical design

Stem-up and stem-down version

Customer defined pressure gauge

Install easily, high reliability

Zero adjustment

Specification

Ranges 0….16MPa to 0….150MPa
Accuracy ±1.6%FS,
Repeatability ±0.2%
Configuration Bourdon tube
Over Pressure 1.5×FS
Max Diaphragm Temp. 350℃
Dial Diameter 100mm
Process Connection

1/2″-20UNF, M14×1.5, M18×1.5(Optional)


Rigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic MachineryRigid Stem Bourdon Tube Pressure Gauge For Rubber Plastic Machinery
