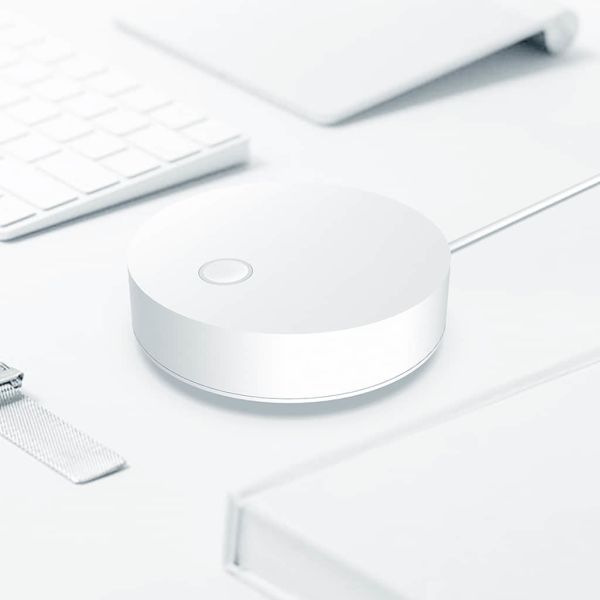

5V Tuya Zigbee Smart Gateway Hub 3.0
5V Tuya Zigbee Smart Gateway Hub 3.0
5V Tuya Zigbee Smart Gateway Hub 3.0
5V Tuya Zigbee Smart Gateway Hub 3.0
5V Tuya Zigbee Smart Gateway Hub 3.0
5V Tuya Zigbee Smart Gateway Hub 3.0
Specifications
Brand Name :
Multi IR
Model Number :
MIR-GW100
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen, China
MOQ :
Standard packing 200pcs. OEM packing 2000pcs
Price :
Negotiable
Payment Terms :
T/T in advance
Supply Ability :
5000pcs/day
Delivery Time :
25 working days
Packaging Details :
120PCS/CTN, Carton size: 405*375*335mm
Product Name :
Zigbee Hub
Wireless Technology :
Wi-Fi 802.11 B/g/n Zigbee 3.0
Zigbee module :
TYZS3
Communication Distance :
100m (open air)
Working Voltage :
Micro USB DC 5V
Working current :
1A
Working temperature :
-10℃～+55℃
Working humidity :
10%-90%RH
Connecting devices :
32
Dimension :
75*23mm
Description

Tuya Zigbee Smart Hub, Smart Gateway Wireless Home Control System

Function descriptions

  • [2.4G WiFi, not support 5G] Tuya ZigBee gateway supports a 2.4G WiFi network, not support 5G, when configuring the network, please pay attention to it. The device communication network is ZigBee 3.0.

​

  • [Zigbee Device compatible] Product with tuya ZigBee solution can be well connected to our tuya Zigbee hub, including switches, cameras, sockets, sensors, door locks, electric curtains, infrared remote controls, etc.

​

  • [Support 32 devices] Our Zigbee gateway can connect to at least 32pcs, which is enough for small houses or apartment buildings.

​

Technical parameters

Wireless Technology Wi-Fi 802.11 b/g/n
Zigbee 3.0
Zigbee moduel TYZS3
Communication Distance 100m (open air)
Working Voltage Micro USB DC 5V
Working current 1A
Working temperature -10℃～+55℃
Working humidity 10%-90%RH
Connecting devices 32
Dimension 75*23mm

Status Indicator and Reset

Blue indicator: indicates the Zigbee status.

Blinking: Allow devices to access the network

Steady on: The Zigbee is inactivated.

Steady off: The Zigbee is activated

Red indicator: indicates the Wi-Fi status.

Red LED on, network-connected.

Red LED flash, the hub is ready for connection.

Red LED off, WiFi network is configured, but can not connect.

To reset the gateway, press and hold the reset button for 5s. If the blue indicator blinks several times, the gateway is successfully reset.
