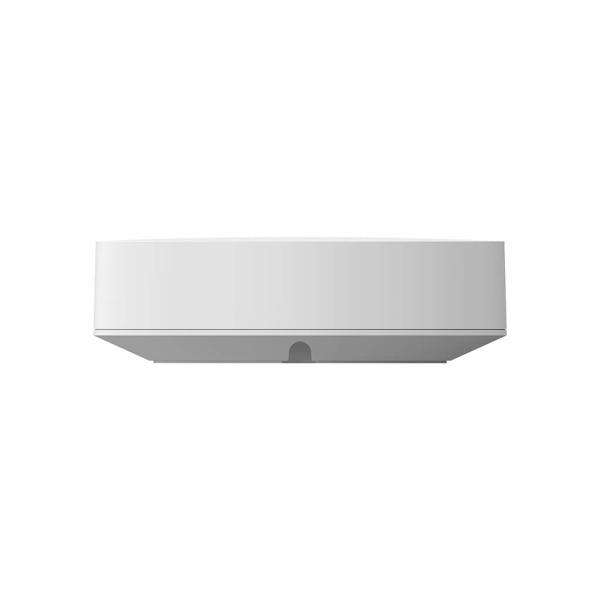

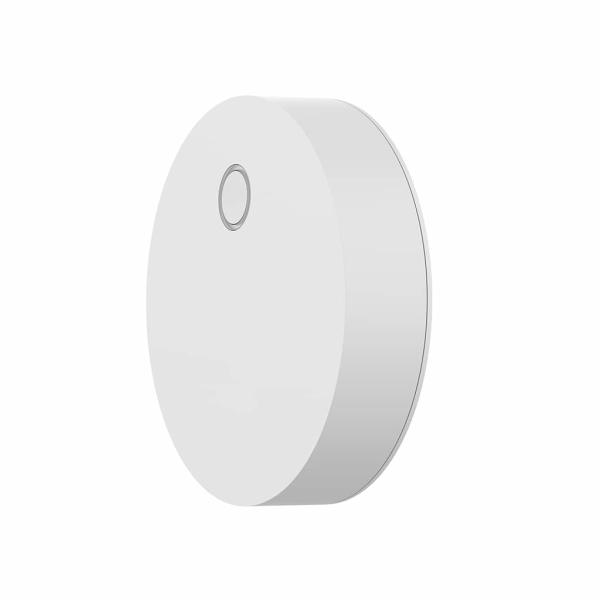

2.4G WiFi Zigbee Smart Hub 75*23mm For Sensors Door Locks Electric Curtains
2.4G WiFi Zigbee Smart Hub 75*23mm For Sensors Door Locks Electric Curtains
2.4G WiFi Zigbee Smart Hub 75*23mm For Sensors Door Locks Electric Curtains
2.4G WiFi Zigbee Smart Hub 75*23mm For Sensors Door Locks Electric Curtains
2.4G WiFi Zigbee Smart Hub 75*23mm For Sensors Door Locks Electric Curtains
2.4G WiFi Zigbee Smart Hub 75*23mm For Sensors Door Locks Electric Curtains
Specifications
Brand Name :
Multi IR
Model Number :
MIR-GW100
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen, China
MOQ :
Standard packing 200pcs. OEM packing 2000pcs
Price :
Negotiable
Payment Terms :
T/T in advance
Supply Ability :
5000pcs/day
Delivery Time :
25 working days
Packaging Details :
120PCS/CTN, Carton size: 405*375*335mm
Product Name :
Zigbee Smart Gateway
Wireless Technology :
Wi-Fi 802.11 b/g/n Zigbee 3.0
Zigbee module :
TYZS3
Working Voltage :
Micro USB DC 5V
Connecting devices :
32
Dimension :
75*23mm
Description

Tuya Zigbee Smart Gateway Support 32 Devices, 2.4G WiFi, Zigbee 3.0

Function descriptions

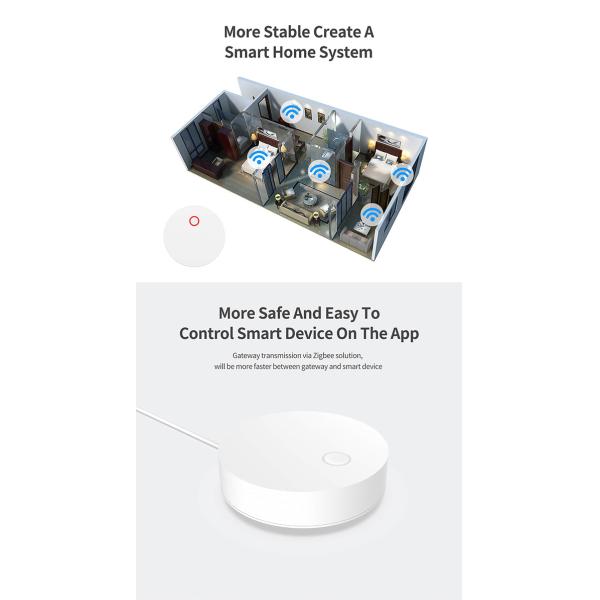

  • Gateway transmission via Zigbee solution is much faster and more stable between gateway and smart device. Easy to control smart device on the APP.

  • Tuya ZigBee smart wireless gateway supports a 2.4G WiFi network direct connection, and the device communication network is ZigBee 3.0.

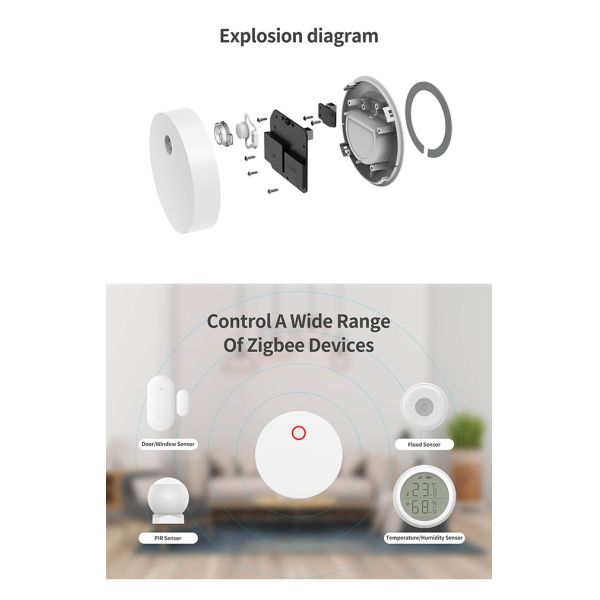

  • Product function: Tuya ZigBee hub is used with ZigBee series products, including switches, cameras, sockets, sensors, door locks, electric curtains, infrared remote controls, etc.

Technical parameters

Wireless Technology Wi-Fi 802.11 b/g/n
Zigbee 3.0
Zigbee module TYZS3
Communication Distance 100m (open air)
Working Voltage Micro USB DC 5V
Working current 1A
Working temperature -10℃～+55℃
Working humidity 10%-90%RH
Connecting devices 32
Dimension 75*23mm

Status Indicator and Reset

Blue indicator: indicates the Zigbee status.

Blinking: Allow devices to access the network

Steady on: The Zigbee is inactivated.

Steady off: The Zigbee is activated

Red indicator: indicates the Wi-Fi status.

Red LED on, network-connected.

Red LED flash, the hub is ready for connection.

Red LED off, WiFi network is configured, but can not connect.

To reset the gateway, press and hold the reset button for 5s. If the blue indicator blinks several times, the gateway is successfully reset.
