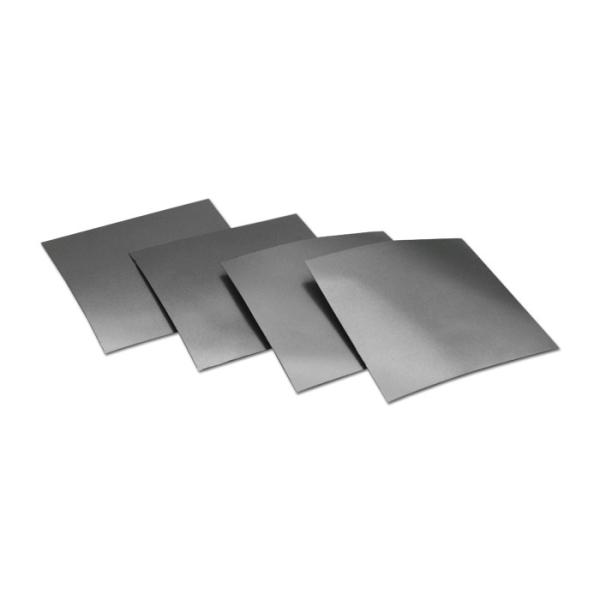

TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet
TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet
TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet
TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet
Specifications
Brand Name :
Ziitek
Model Number :
TIR300AL Series
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet
Hardness :
85 Shore A
Material :
Carbon Nano Composite The Aluminum Foil vavuum spputtering
Keywords :
Thermal Graphite Sheet
Color :
Black
Operation Temperature :
-40℃~ 400℃
Volume Resistivity :
6.2X10³ Ohm-meter
Thermal Conductiivity :
450W/m-K
Description

TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet

TIR™300ALSeries products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.

TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet

Feature

> Good thermal conductive: 450W/mK
> Easy to assemble
> Ultra-thin type

> Low thermal resistance

> RoHS compliant

Application

> PDP,LCD TV,Set top box

> Laptop,Notebook,Projector

> Mobile phone,Hand‐held devices

> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers

Typical Properties of TIR™300AL series
Product Name TIR™350AL-T2 TIR™380AL-T2 Test Method
Colour Black
Material Carbon Nano Composite The Aluminum Foil vavuum spputtering
Total Thickness 0.050 mm 0.080 mm ASTM D751
Copper foil thickness 0.030mm 0.050mm ASTM D751
Single-sided coating thickness 0.010mm 0.015mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% ASTM D751
Density 2.7 g/cc 2.7 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃~ 400℃ ******
Volume Resistivity 6.3X10³ Ohm-meter ASTM D257
Tensile Strength 30psi 40psi ASTM D412
Typical Thermal Conductivit (In Z axis) 60W/m-K 60W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 450W/m-K 450W/m-K ASTM D5470
Thermal Resistance @100psi 0.072 (in²℃/W) 0.105(in²℃/W) ASTM D5470

Standard Sheets Sizes : 500mm X 50m

TIR™ 300AL series Individual die cut shapes can be supplied.

Consult the factory alternate thickness

TIR300AL Series Carbon Nano Composite The Aluminum Foil Thermal Conductive Graphite Sheet

Company Profile

Vietnam Ziitek Technology Company Limited provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
