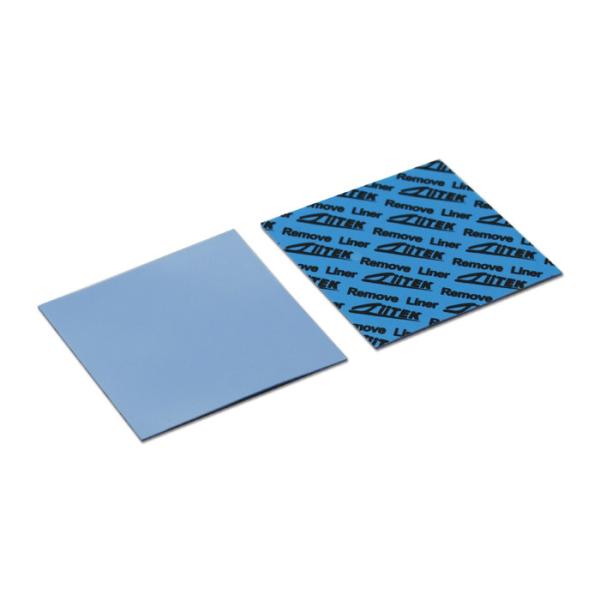

TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad
TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad
TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad
TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-12-05ES
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad
Thermal Conductivity :
1.2W/mK
Hardness :
12±5 Shore 00
Density :
2.0 g/cm³
Color :
Blue
Dielectric Breakdown Voltage :
>5500VAC
Application :
LED,CPU,Display card,Mainboard,mother board
Keywords :
Heat Sink Cooling Pad
Description

TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad

The TIF™100-12-05ES Series thermally conductive interface materials are gapfillers reinforced one side with kepton; the other side with adhesive.They are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and viscoelastic feature make them ideal to coat very uneven surfaces. lts smooth, puncture-,tear-, wear-resistant reinforcement surface is perfect for reworking and plug-in devices.

TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad

Features:


> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized


Applications:


> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp

Typical Properties of TIF100-12-05ES Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density 2.0g/cm³ ASTM D297
Thickness range 0.020"(0.5mm)~0.200"(5.0mm) ******
Hardness 12±5 Shore 00 ASTM 2240
Continuos Use Temp -40 to 160℃ ***
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity(Ohm-cm) 1.0X1012 ASTM D257
Fire rating 94 V0 UL equivalent
Thermal conductivity 1.2W/m-K ASTM D5470

Standard Thicknesses:
0.010" (0.25mm), 0.020" (0.51mm), 0.030" (0.76mm), 0.040" (1.02mm),
0.050" (1.27mm), 0.060" (1.52mm), 0.070" (1.78mm), 0.080" (2.03mm),
0.090" (2.29mm), 0.100" (2.54mm), 0.110" (2.79mm), 0.120" (3.05mm),
0.130" (3.30mm), 0.140" (3.56mm), 0.150" (3.81mm), 0.160" (4.06mm),
0.170" (4.32mm), 0.180" (4.57mm), 0.190" (4.83mm), 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
TIF100-12-05ES Factory Custom Size Termal Pad 1.2W LED Heat Sink Cooling Pad
Company Profile

Vietnam Ziitek Technology Company Limited provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
