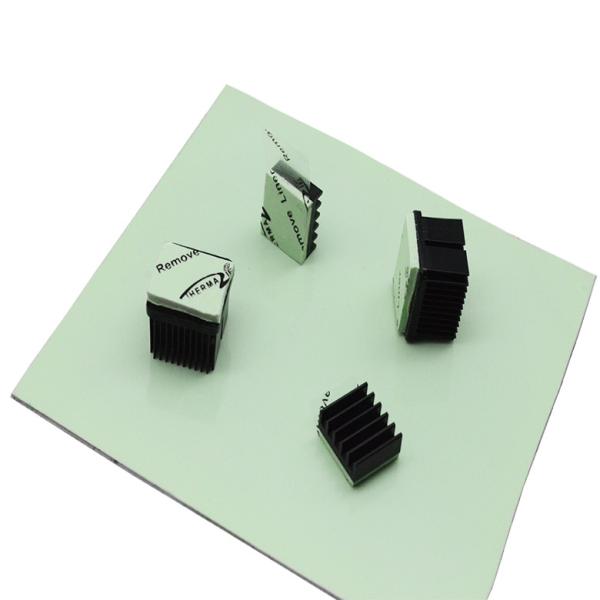

TIF100-66U Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad
TIF100-66U Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad
TIF100-66U Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad
TIF100-66U Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad
Specifications
Brand Name :
Ziitek
Model Number :
TIF100-66U
Certification :
UL and RoHs
Place of Origin :
Vietnam
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad
Thermal Conductivity :
1.2W/mK
Density :
2.1 g/cm³
Keywords :
Thermal Pad
Color :
Green
Hardness :
27±5 Shore 00
Dielectric Breakdown Voltage :
>5500VAC
Application :
CPU,Display card,Mainboard,mother board
Description

Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad

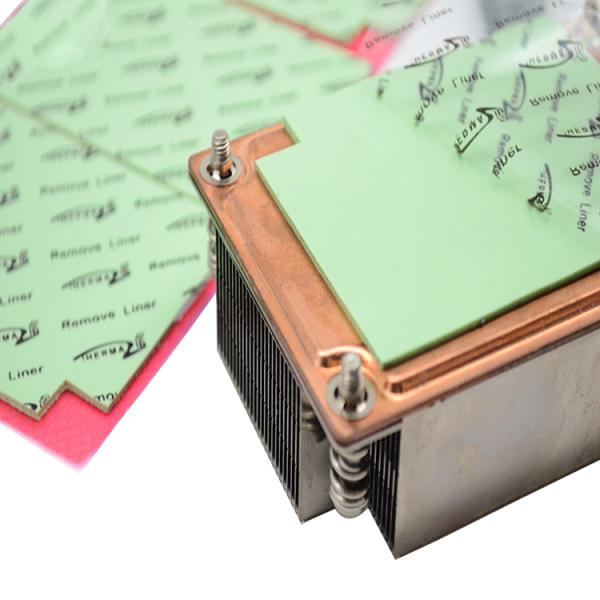

The TIF™100-66U series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

TIF100-66U Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad

Features:


> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized


Applications:


> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF100-66U Series
Property Value Test method
Color Green Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density 2.1g/cm³ ASTM D297
Thickness range 0.010"(0.25mm)~0.200"(5.0mm) ******
Hardness 27±5 Shore 00 ASTM 2240
Continuos Use Temp -40 to 160℃ ***
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.0 MHz ASTM D150
Volume Resistivity(Ohm-cm) 1.0X1012 ASTM D257
Fire rating 94 V0 UL equivalent
Thermal conductivity 1.2W/m-K ASTM D5470

Standard Thicknesses:
0.010" (0.25mm), 0.020" (0.51mm), 0.030" (0.76mm), 0.040" (1.02mm),
0.050" (1.27mm), 0.060" (1.52mm), 0.070" (1.78mm), 0.080" (2.03mm),
0.090" (2.29mm), 0.100" (2.54mm), 0.110" (2.79mm), 0.120" (3.05mm),
0.130" (3.30mm), 0.140" (3.56mm), 0.150" (3.81mm), 0.160" (4.06mm),
0.170" (4.32mm), 0.180" (4.57mm), 0.190" (4.83mm), 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
TIF100-66U Custom Laptop Hard Drive GPU CPU Thermal Conductive Pad
Company Profile

Vietnam Ziitek Technology Company Limited is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in Vietnam.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
